CEDAR LINEAR STANDALONE SUSPENDED

LED Panel Edgelit

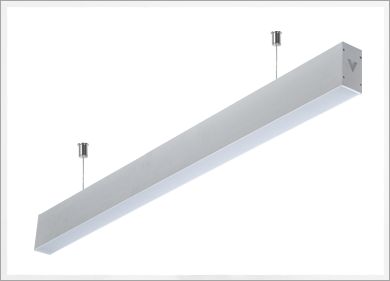

Cedar Linear Standalone Suspended
LED Panel Edgelit

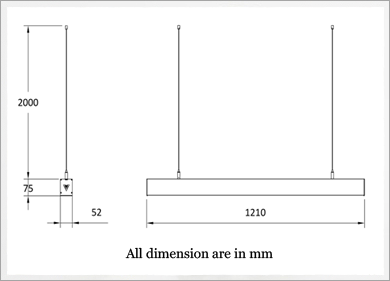

Dimension Details
LED Panel Edgelit

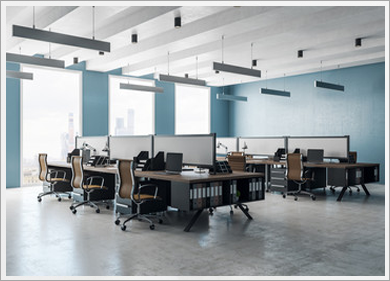

Application

Description

Cedar Linear Series is highly innovative product suitable for various indoor applications. Cedar Linear Pendant delivers high performance and quality light output. Cedar pendant offers latest and best combination of energy efficiency , performance ,aesthetics and flexibility of designing.

Specifications & Features

  • Cedar Linear is available in standalone in 4ft length in standard wattages 18W ,24W,28W &36W ,48W & 56W in 8feet.
  • Anodised aluminium body with excellent mechanical strength and durability.
  • High quality anti pc leakage profile design diffuser for high quality illumination across horizontal and vertical surface.
  • Excellent heat dissipation system through luminaire housing.
  • Rated life of L70@50000 hour sensure sun interrupted longservice life.
  • CRI >80 & THD <10 % and pf > 0.95 & CCT options of 5700K & 4000K
  • Best in class lumenper watt-more light for lesscost.
  • In-built electrical protections like overvoltage,shortcircuit,overload,miswiring for additional safety precautions.
  • With high efficiency lowpower lossdriver,systemis maintained at cooler temperature and leads to longer driverlife.
  • Driver duly wired up to the terminal block .
  • Available with option of multiwatt/ analog and DALI drivers
  • Product is design for easy servicing.Standard available colour of luminaire will be white, black or grey can also be offered.

    • Installation & Maintenance

  • Suspension system with quick onsite adjustment.
  • Suitable for mounting on RCC ceiling
  • Access to driver is from side of the fixture.
  • Suitable for mounting on grid ceiling.

    • Applications

  • Open Modern Offices
  • Retail Stores
  • Green Buildings
  • Airport Terminals
  • Shopping Malls
  • Retail Shops

    • Compliance

  • IP 20
  • Class I

    • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp THD Power Factor Mains Current Weight (Kg)
    VLC1178 VLCP/111/18/57/00/1.2M/SA-DN/NWH/V0 18W 5700K < 10% >0.95 0.0789 Amps 2.03kg
    VLC1179 VLCP/111/24/57/00/1.2M/SA-DN/NWH/V0 24W 5700K < 10% >0.95 0.1053 Amps 2.03kg
    VLC1180 VLCP/111/28/57/00/1.2M/SA-DN/NWH/V0 28W 5700K < 10% >0.95 0.1228 Amps 2.03kg
    VLC1181 VLCP/111/36/57/00/2.4M/SA-DN/NWH/V0 36W 5700K < 10% >0.95 0.1579 Amps 4.06kg
    VLC1182 VLCP/111/48/57/00/2.4M/SA-DN/NWH/V0 48W 5700K < 10% >0.95 0.2105 Amps 4.06kg
    VLC1183 VLCP/111/56/57/00/2.4M/SA-DN/NWH/V0 56W 5700K < 10% >0.95 0.2456 Amps 4.06kg
    VLC1184 VLCP/111/18/40/00/1.2M/SA-DN/NWH/V0 18W 4000K < 10% >0.95 0.0789 Amps 2.03kg
    VLC1185 VLCP/111/24/40/00/1.2M/SA-DN/NWH/V0 24W 4000K < 10% >0.95 0.1053 Amps 2.03kg
    VLC1186 VLCP/111/28/40/00/1.2M/SA-DN/NWH/V0 28W 4000K < 10% >0.95 0.1228 Amps 2.03kg
    VLC1187 VLCP/111/36/40/00/2.4M/SA-DN/NWH/V0 36W 4000K < 10% >0.95 0.1579 Amps 4.06kg
    VLC1188 VLCP/111/48/40/00/2.4M/SA-DN/NWH/V0 48W 4000K < 10% >0.95 0.2105 Amps 4.06kg
    VLC1189 VLCP/111/56/40/00/2.4M/SA-DN/NWH/V0 56W 4000K < 10% >0.95 0.2456 Amps 4.06kg
    Lamp Enclosed Rated
