DAISY BOLLARD SERIES

LED Panel Edgelit

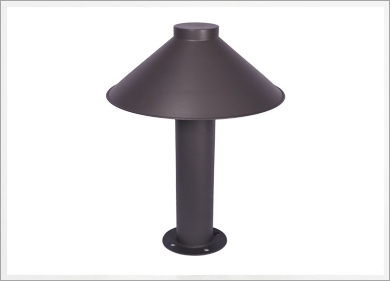

Daisy 1
LED Panel Edgelit

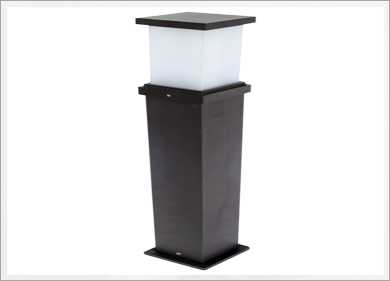

Daisy 2
LED Panel Edgelit

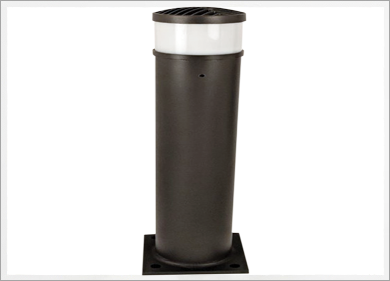

Daisy 3
LED Panel Edgelit

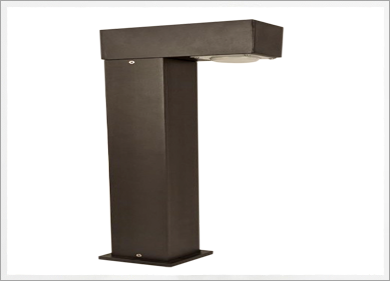

Daisy 4
LED Panel Edgelit

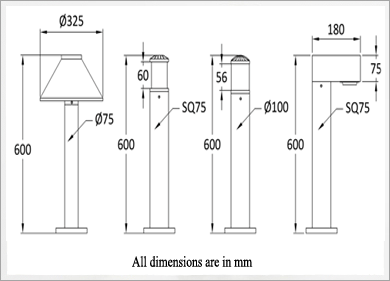

Dimension Details
LED Panel Edgelit

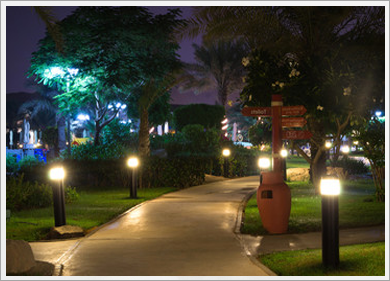

Application

Description

Outdoor lighting is one of the essential elements in a well-designed landscape or garden. When applied to outdoor landscape lighting Daisy Bollard enhances the aesthetics of landscape elements and creates theme to the surrounding elements. These bollard illuminates landscapes, pathways , garden , walkways ,parking lots providing high safety, enhanced security, with soft & soothing illumination featuring architectural elements of landscape.

Specifications & Features

  • Daisy Series bollards provides natural feel of urban landscape lighting with high on aesthetics, ambience & safety.
  • The luminaire is available in 9W in 600mm length.
  • Daisy -1 Luminaire construction is made of aluminum in graphite grey finish.
  • Daisy -2, 3 & 4 Luminaire construction is made of aluminium& in graphite grey finish & diffuser in opal grade PMMA
  • Rated life of L70 @ >50000 hours ensures uninterrupted long service life.
  • Color temperature of 5700K /3000K available.
  • The surge protection of the luminaire is 4KV.
  • Operating voltage 140V -270V & THD < 10% & Pf >0.9 & CRI>70
  • The luminaire Electrical Safety Class I & IP65.
  • Mounted on concrete pedestal on the given base.
  • Service & Maintenance can be done for control gear & optical compartment.

    • Installation & Maintenance

  • Follow the foundation system as per details given in MI-Sheet .
  • Fix the lamp post firmly on the foundation, Open the gurb screws and connect LEN connection and complete the installation, refer MI-sheet for other details .
  • Driver replacement, open gurbscrews , replace the driver and reassemble .

    • Applications

  • Landscapes
  • Pathways
  • Gardens
  • Walkways
  • Retail Stores Front
  • Schools
  • Parking Lot Structures

    • Compliance

  • IP 65
  • Class I

    • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD Power Factor Weight (Kg)
    VLB6006 VLBB/602/09/57/600MM/NGC/V0 9W 5700K 0.042 Amps < 10% >0.9 3.6kg
    VLB6007 VLBB/602/09/30/600MM/NGC/V0 9W 3000K 0.042 Amps < 10% >0.9 3.6kg
    VLB6008 VLBB/603/09/57/600MM/NGC/V0 9W 5700K 0.042 Amps < 10% >0.9 2kg
    VLB6009 VLBB/603/09/30/600MM/NGC/V0 9W 5700K 0.042 Amps < 10% >0.9 2kg
    VLB6010 VLBB/605/09/57/600MM/NGC/V0 9W 5700K 0.042 Amps < 10% >0.9 4.4kg
    VLB6011 VLBB/605/09/30/600MM/NGC/V0 9W 3000K 0.042 Amps < 10% >0.9 4.4kg
    VLB6012 VLBB/606/09/57/600MM/NGC/V0 9W 5700K 0.042 Amps < 10% >0.9 2.4kg
    VLB6013 VLBB/606/09/30/600MM/NGC/V0 9W 3000K 0.042 Amps < 10% >0.9 2.4kg
    Lamp Enclosed Rated
