MAPLE NEO SURFACE

LED Panel Edgelit

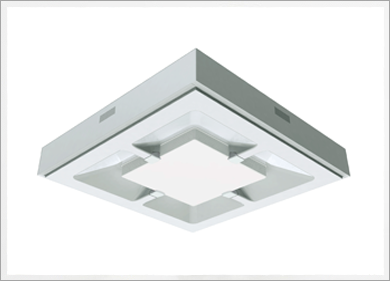

MAPLE NEO Surface
 LED Panel Edgelit

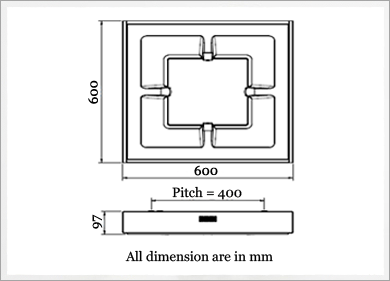

Dimension Details
 LED Panel Edgelit
Application

Description

Maple Neo Surface is a professional LED lighting solution offered in 20W,23W,25W,28W,30W, 36W. Maple Neo Surface has a pressure die cast body which is enclosed in outer CRCA shell .Luminaire provides high degree of architectural flexibility which raises the workspace environment.

Specifications & Features

  • Options of wattages available in 25W, 30W , 36W in 100 LPW & 20W ,23W & 28W in 130 LPW
  • Elegantly designed luminaire with CRCA outer shell with main body made of pressure die cast body.
  • Injection mouldeddiffuser is made of special polycarbonate material with high transmission diffuser delivers effective light output without any dark & bright patch.
  • Best in class lumen per watt upto 130 LPW more light for less cost
  • Rated life of L70@ 50000 hrs ensures uninterrupted long service life.
  • Superior lumen and color maintenance with excellent CRI 80.
  • With high efficiency low power loss driver system is maintained at cooler temperature and lead to longer driver life.
  • The luminaire is rated for Efficacy >100& 130LPW LPW, Pf >0.95 , THD <10%.
  • Color Temperature availaible are cool white and neutral white.
  • Reliable integrated power driver for long system life span.
  • Installation & Maintenance

  • Mounting suitable for arm strong ceiling with cut-out dimension of 575mmx575mm.
  • Please use frame for mounting on POP /Gypsum ceiling .
  • Suspension mounting through 4 mounting brackets.
  • Maintenance through releasing four M4 screws from backside of luminaire.
  • The average weight of Maple Surface luminaire is 8.5kg.
  • Applications

  • Departmental Stores & Commercial Buildings
  • IT buildings & Offices
  • Airport Terminals & Retail Chains
  • Compliance

  • IP 20
  • Class I
  • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp THD Power Factor Mains Current Weight (Kg)
    VLC1116 VLCS/115/25/57/00/NWH/V0 25W 5700K < 10% >0.95 0.11 Amps 8.5kg
    VLC1117 VLCS/115/30/57/00/NWH/V0 30W 5700K < 10% >0.95 0.138 Amps 8.5kg
    VLC1118 VLCS/115/36/57/00/NWH/V0 36W 5700K < 10% >0.95 0.16 Amps 8.5kg
    VLC1119 VLCS/115/20/57/30/NWH/V0 20W 5700K < 10% >0.95 0.09 Amps 8.5kg
    VLC1120 VLCS/115/23/57/30/NWH/V0 23W 5700K < 10% >0.95 0.105 Amps 8.5kg
    VLC1121 VLCS/115/28/57/30/NWH/V0 28W 5700K < 10% >0.95 0.13 Amps 8.5kg
    Lamp Enclosed Rated
