PALM MAX NEO

LED Panel Edgelit
Palm Max Neo
 LED Panel Edgelit

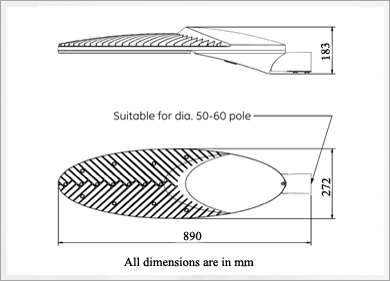

Dimension Details
 LED Panel Edgelit

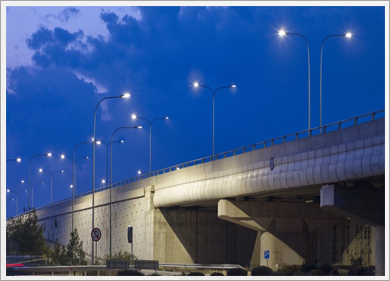

Application

Description

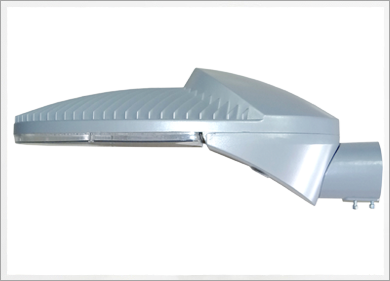

Palm Max Street Light Series continues to impress and raise the bar on performance and reliability through its new addition, the Palm Max Neo. And now, it outperforms its competitors by far through delivery of best in class specifications and durability. With its unrivalled lumen output and affordance in tandem with specialized optical distribution technology, Palm Max Neo provides superior illumination, perfect for a wide variety of roadway, city infra, highways &express way lighting applications.

Specifications & Features

  • Palm Max Neo range is available in 120W to 240W with best in class Lumen per watt– more light for less cost , Available with efficacy upto 130LPW LED Street Lighting .
  • Elegantly designed pressure die cast aluminum housing body with optimal heat sink for better thermal dissipation.
  • Injection molded diffuser is made of special Polycarbonate material with high transmission index, delivering superior light output.
  • Rated life of L70 @ >50000 hours ensures uninterrupted long service life.
  • Color temperature of 5700K and CRI > 70 for brighter outdoor application.
  • Secondary lens used for asymmetric wide distribution, ideal for street light application. .
  • With the use of special type of Micro Vent (rated at IP69), enclosure is allowed to breath to avoid entry of moisture and industrial micro-particles inside housing. .
  • Use of suitable grommet allows air tight wire entry to housing
  • In-built electrical protections like over voltage, short circuit, over load, misswiring, surge protection of min 6kV with electrical class I rating for additional safety precautions.
  • With high efficiency low power loss driver, system is maintained at cooler temperature and leads to longer driver life.
  • Silicone gasket ensures both optical and electrical compartments are IP 66 protected.
  • Compatible with smart city lighting applications.
  • Installation & Maintenance

  • Compatible for pole mounting with pole outer diameter 50mm to 60mm.
  • Fixture can be mounted with help of M8 bolts (2 no's) made of Stainless Steel..
  • Wiring through open 3 poles wires..
  • Applications

  • Expressways
  • Highways and overhead roads
  • Industrial main roads
  • City major & minor roads
  • Compliance

  • IP 66
  • Class I
  • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLR4034 VLRS/408/120/57/00/NGR/V0 120W 5700K 0.52 Amps < 10% >0.95 7kg
    VLR4036 VLRS/408/130/57/00/NGR/V0 130W 5700K 0.57 Amps < 10% >0.95 7kg
    VLR4038 VLRS/408/150/57/00/NGR/V0 150W 5700K 0.65 Amps < 10% >0.95 7kg
    VLR4040 VLRS/408/180/57/00/NGR/V0 180W 5700K 0.79 Amps < 10% >0.95 8kg
    VLR4042 VLRS/408/200/57/00/NGR/V0 200W 5700K 0.87 Amps < 10% >0.95 8kg
    VLR4044 VLRS/408/220/57/00/NGR/V0 220W 5700K 0.96 Amps < 10% >0.95 8kg
    VLR4046 VLRS/408/240/57/00/NGR/V0 240W 5700K 1.05 Amps < 10% >0.95 8kg
    *Note :Available Efficacy upto 130 LPW
    Lamp Enclosed Rated
