PALM MID NEO

LED Panel Edgelit
Palm Mid Neo
LED Panel Edgelit

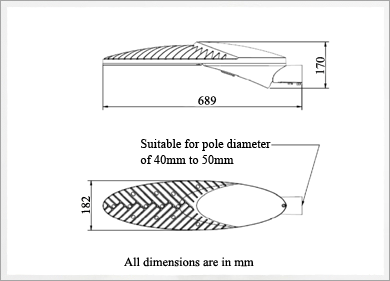

Dimension Details
LED Panel Edgelit

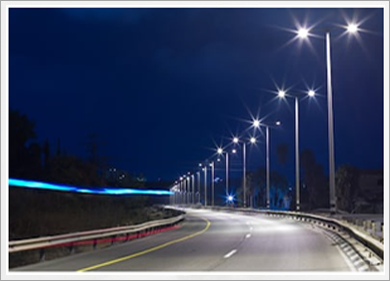

Application

Description

Palm Mid Street Light Series continues to impress and raise the bar on performance and reliability through its new addition, the Palm Mid Neo. And now, it outperforms its competitors by far through delivery of best in class specifications and durability. With its unrivalled lumen output and affordance in tandem with specialized optical distribution technology, Palm Mid Neo provides superior illumination, perfect for a wide variety of roadway and area lighting applications.

Specifications & Features

  • Options are available in 45W to 110W with best in class lumen per watt – more light for less cost. Available with efficacy up to 130LPW LED Street Lighting (SL).
  • Elegantly designed pressure die cast aluminum housing body with optimal heat sink for better thermal dissipation.
  • Injection molded diffuser is made of special Polycarbonate material with high transmission index, delivering superior light output.
  • Rated life of L70 @ >50000 hours ensures uninterrupted long service life.
  • Color temperature of 5700K for brighter outdoor application.
  • Secondary lens used for asymmetric wide distribution, ideal for street light application.
  • With the use of special type of Micro Vent (rated at IP69), enclosure is allowed to breath to avoid entry of moisture and industrial micro particles inside housing.
  • Use of suitable grommet allows air tight wire entry to housing.
  • In-built electrical protections like over voltage, short circuit, over load, mis wiring , surge protection of min 6kV with electrical class I rating for additional safety precautions
  • With high efficiency low power loss driver, system is maintained at cooler temperature and leads to longer driver life.
  • Silicone gasket ensures both optical and electrical compartments are IP 66 protected.

    • Installation & Maintenance

  • Compatible for pole mounting with pole outer diameter 40mm to 50mm.
  • Fixture can be mounted with help of M8 bolts (2 no's) made of Stainless Steel.
  • Wiring through open 3 poles wires.

    • Applications

  • Expressways
  • Highways and overhead roads
  • Industrial main roads
  • City major & minor roads

    • Compliance

  • IP 66
  • Class I

    • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLR4020 VLRS/407/45/57/00/NGR/V0 45W 5700K 0.195 Amps < 10% >0.95 3.8kg
    VLR4022 VLRS/407/60/57/00/NGR/V0 60W 5700K 0.265 Amps < 10% >0.95 3.8kg
    VLR4024 VLRS/407/72/57/00/NGR/V0 72W 5700K 0.315 Amps < 10% >0.95 3.8kg
    VLR4026 VLRS/407/80/57/00/NGR/V0 80W 5700K 0.35 Amps < 10% >0.95 3.8kg
    VLR4028 VLRS/407/90/57/00/NGR/V0 90W 5700K 0.395 Amps < 10% >0.95 3.8kg
    VLR4030 VLRS/407/100/57/00/NGR/V0 100W 5700K 0.439 Amps < 10% >0.95 3.8kg
    VLR4032 VLRS/407/110/57/00/NGR/V0 110W 5700K 0.49 Amps < 10% >0.95 3.8kg
    *Note Efficacy Upto 130LPW
    Lamp Enclosed Rated
