PALM MIN NEO

LED Panel Edgelit
Palm Min Neo
LED Panel Edgelit
Dimension Details
LED Panel Edgelit

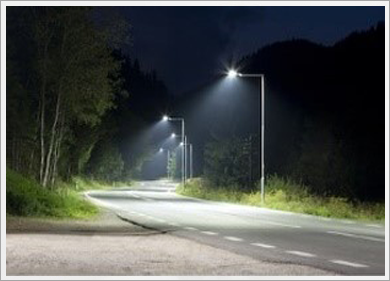

Application

Description

Venture Palm Min Neo offers highly effective and efficient lighting solution to street light application offered in variants of 15W, 20W and 24W. Inspired from nature PALM Min Neo has the most creative design in terms of aesthetics. With its unique pressure die cast housing and effective thermal management, optimum lighting quality & distribution it produces splendid outdoor lighting effect..

Specifications & Features

  • Options are available in 15W, 20W & 24W with best in class Lumen per watt > 100 LPW.
  • Pressure die – cast Aluminum (PDC) housing aesthetically designed body luminaire with powder coat for corrosion resistance & top openable.
  • Injection molded non yellowing type polycarbonate cover with high transmission index with anti UV protection
  • Rated life of L70 @ >50000 hours ensures uninterrupted long service life.
  • Color temperature of 5700K and CRI > 70 for brighter outdoor application.
  • Special secondary optics for higher spacing between poles with excellent light distribution and uniformity.
  • Excellent heat sink design to keep the junction temperature low in conformance to LM 80 report. .
  • UL approved MCPCB and impact resistance of IK 08..
  • In-built electrical protections like over voltage, short circuit, over load, miss- wiring , surge protection of min 6kV with electrical class I rating for additional safety precautions.
  • Universal Voltage driver to operates wide voltage range from 110V to 270V 50/60Hz application
  • With high efficiency low power loss driver, system is maintained at cooler temperature and leads to longer life .
  • Provided with special type of micro vent rated at IP69 , enclosure is allowed to breathe to avoid entry of moisture and industrial micro particle inside the housing .
  • Silicone gasket ensures both optical and electrical compartments are IP 66 protected.
  • Lateral pole mounting suitable for pole dia up to 40mm.

    • Installation & Maintenance

  • Compatible for pole mounting with pole outer diameter of 40mm.
  • Fixture can be mounted with help of M8 bolts (2 no's) made of Stainless Steel..
  • Access to gear compartment through one M6 captive screw arrangement.

    • Applications

  • Secondary Roads & Peripheral Roads
  • Residential Colonies & Roads
  • Industrial Complexes & Office Campus
  • Pedestrian walkways

    • Compliance

  • IP 66
  • Class I

    • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLR4017 VLRS/406/15/57/00/NGR/V0 15W 5700K 0.065 Amps < 10% >0.95 1.1kg
    VLR4018 VLRS/406/20/57/00/NGR/V0 20W 5700K 0.087 Amps < 10% >0.95 1.1kg
    VLR4019 VLRS/406/24/57/00/NGR/V0 24W 5700K 0.105 Amps < 10% >0.95 1.1kg
    Lamp Enclosed Rated
