PALM ULTRA MIN NEO

LED Panel Edgelit
Palm Ultra Min Neo
 LED Panel Edgelit

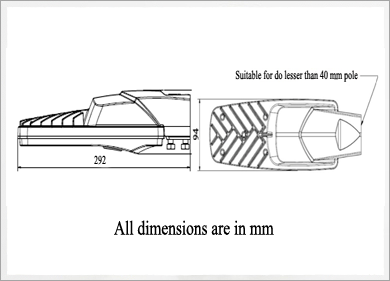

Dimension Details
 LED Panel Edgelit
Application

Description

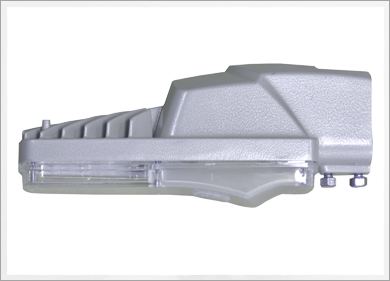

Venture Palm Ultra Min Neo offers highly effective and efficient lighting solution to street light application offered in variants of 10W, 12W and 14W .Inspired from nature PALM Ultra Min Neo has the most creative design in terms of aesthetics . With its unique pressure die cast housing and effective thermal management, optimum lighting quality & distribution it produces splendid outdoor lighting effect.

Specifications & Features

  • Options are available in 10W, 12W & 14W with best in class Lumen per watt > 100 LPW.
  • Pressure die – cast Aluminum (PDC) housing aesthetically designed body with powder coat for corrosion resistance
  • Injection molded non yellowing type polycarbonate cover with high transmission index with anti UV protection
  • Rated life of L70 @ >50000 hours ensures uninterrupted long service life.
  • Color temperature of 5700K and CRI > 70 for brighter outdoor application.
  • Special secondary optics for higher spacing between poles with excellent light distribution and uniformity .
  • Excellent heat sink design to keep the junction temperature low in conformance to LM 80 report. .
  • UL approved MCPCB and impact resistance of IK 08.
  • In-built electrical protections like over voltage, short circuit, over load, miss- wiring , surge protection of min 6kV with electrical class I rating for additional safety precautions.
  • Universal Voltage driver to operates wide voltage range from 110V to 270V 50/60Hz application
  • With high efficiency low power loss driver, system is maintained at cooler temperature and leads to longer driver life.
  • Silicone gasket ensures both optical and electrical compartments are IP 66 protected.
  • Lateral pole mounting suitable for pole dia upto 40mm.
  • Installation & Maintenance

  • Compatible for pole mounting with pole outer diameter of 40mm.
  • Fixture can be mounted with help of M8 bolts (2 no's) made of Stainless Steel..
  • Access to gear compartment for initial wiring through unscrewing 5 no’s of M4 screws..
  • Applications

  • Secondary Roads & Peripheral Roads
  • Peripheral Roads & Office Campus
  • Industrial Complexes & Office Campus
  • Workshops
  • Pedestrian walkways & Residential Colony
  • Compliance

  • IP 66
  • Class I
  • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLR4014 VLRS/405/10/57/00/NGR/V0 10W 5700K 0.05 Amps < 10% >0.9 1kg
    VLR4015 VLRS/405/12/57/00/NGR/V0 12W 5700K 0.06 Amps < 10% >0.9 1kg
    VLR4016 VLRS/405/14/57/00/NGR/V0 14W 5700K 0.07 Amps < 10% >0.9 1kg
    Lamp Enclosed Rated
