Indoor Commercial Lighting
PINE NEO 150 RECESS, INTERCONNECT & PENDANT

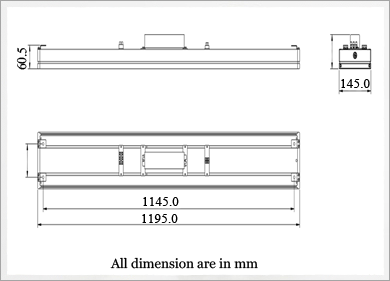

Pine Neo 150 Recess

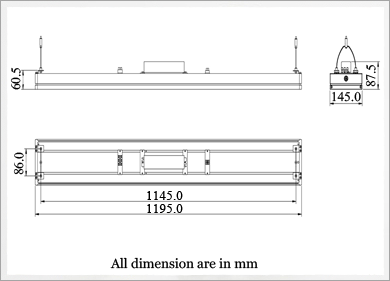

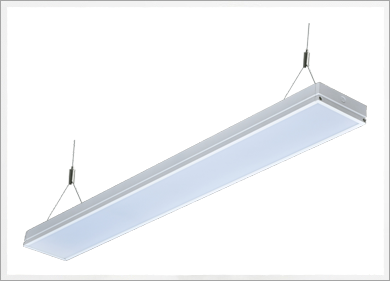

Pine Neo 150 Pendant

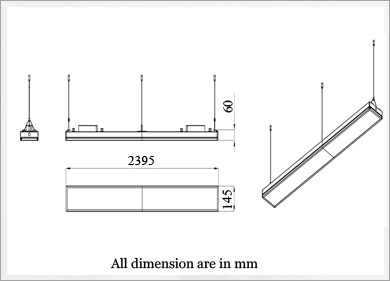

Pine Neo 150 Interconnect
Pine Neo 150 Recess

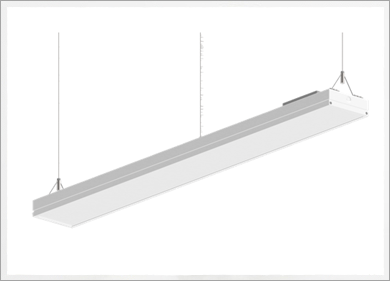

Pine Neo 150 Interconnect

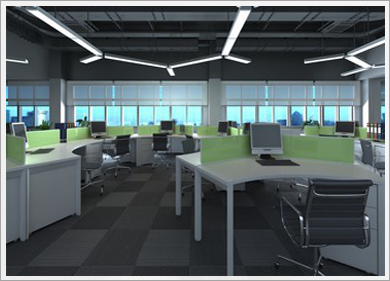

Application
Pine Neo 150 Recess, Interconnect & Pendant
Description
LED commercial fixture suitable for 22W,49W &55W in Cool white and neutral white variants in recessed. With its aesthetic features LED Pine transforms ambient lighting into exquisite balance of refined appearance &excellent efficiency.
Specifications & Features
Elegantly designed Housing is made of high strength light weight aluminium extrusion for excellent surface finish.
Elegantly designed pressure diecast aluminium endcaps.
Flat diff user is made of special Poly carbonate material with excellent diffusion property,deliveringsuperiorlightoutput withlowglareandmaxuniformity.
Rated life of L70@50000 hour sensure sun interrupted long service life.
Color temperature of 5600K & 4000K for soothing indoor application.
Best in class lumenper watt-more light for less cost.
In-built electrical protections for over voltage,shortcircuit,overload,miswiring for additional safety precautions..
The luminaire is rated for Efficacy >100 LPW, Pf >0.95 , THD <10%.
With high efficiency lowpower lossdriver,systemis maintained at cooler temperature and leads to longer driver life.
Available in both recessed and pendant version with ability to cascade for seam less lighting effect
Mounts in integrated & std ceiling system susing frame.
Can also be available in suspended range.
Installation & Maintenance
Mounting: Standard Armstrong tech zone ceiling with cut out1175X130mm for recessed version.
‘Y’suspension unit for pendant mounting through suspension bracket
Easy to cascade option is also available.
Suitable for Surface mounting on RCC ceiling .
Universal suspension system with quick on site adjustment up to 1500 mm.
Easy to install with drill & ribbed anchor screw system.
Access to driver is from top of the fixture.
Applications
Office
Retail
Hospitality
Healthcare
Electrical & Ordering Information Pine Neo 150 Recess
Model / Ordering code |
Description |
System Wattage |
Color Temp |
THD |
Power Factor |
Mains Current |
Weight (Kg) |
VLC1158 |
VLCR/121/44/57/00/2.4M/SA/NWH/V0 |
44W |
5700K |
< 10% |
>0.95 |
0.190 Amps |
6.8Kg |
VLC1159 |
VLCR/121/22/57/00/1.2M/SA/NWH/V0 |
22W |
5700K |
< 10% |
>0.95 |
0.095 Amps |
3.4kg |
VLC1160 |
VLCR/121/49/57/00/1.2M/SA/NWH/V0 |
49W |
5700K |
< 10% |
>0.95 |
0.215 Amps |
3.4kg |
VLC1161 |
VLCR/121/55/57/00/1.2M/SA/NWH/V0 |
55W |
5700K |
< 10% |
>0.95 |
0.240 Amps |
3.4kg |
VLC1162 |
VLCR/121/17/57/00/0.9M/SA/NWH/V0 |
17W |
5700K |
< 10% |
>0.95 |
0.075 Amps |
2.55 kg |
VLC1163 |
VLCR/121/11/57/00/0.6M/SA/NWH/V0 |
11W |
5700K |
< 10% |
>0.95 |
0.048 Amps |
1.7 kg |
Electrical & Ordering Information Pine Neo 150 Pendant
Model / Ordering code |
Description |
System Wattage |
Color Temp |
THD |
Power Factor |
Mains Current |
Weight (Kg) |
VLC1173 |
VLCP/123/22/57/00/1.2M/NWH/V0 |
22W |
5700K |
< 10% |
>0.95 |
0.098 Amps |
3.45kg |
VLC1174 |
VLCP/123/49/57/00/1.2M/NWH/V0 |
49W |
5700K |
< 10% |
>0.95 |
0.215 Amps |
3.45kg |
VLC1175 |
VLCP/123/55/57/00/1.2M/NWH/V0 |
55W |
5700K |
< 10% |
>0.95 |
0.240 Amps |
3.45kg |
Electrical & Ordering Information Pine Neo 150 Recess Interconnect
Model / Ordering code |
Description |
System Wattage |
Color Temp |
THD |
Power Factor |
Mains Current |
Weight (Kg) |
VLC1164 |
VLCR/114/25/57/00/NWH/V0 |
44W |
5700K |
< 10% |
>0.95 |
0.190 Amps |
6.9kg |
VLC1165 |
VLCR/121/22/57/00/1.2M/IC/NWH/V0 |
22W |
5700K |
< 10% |
>0.95 |
0.095 Amps |
3.4kg |
VLC1166 |
VLCR/121/49/57/00/1.2M/IC/NWH/V0 |
49W |
5700K |
< 10% |
>0.95 |
0.215 Amps |
3.4kg |
VLC1167 |
VLCR/121/55/57/00/1.2M/IC/NWH/V0 |
55W |
5700K |
< 10% |
>0.95 |
0.240 Amps |
3.4kg |
VLC1168 |
VLCR/121/17/57/00/0.9M/IC/NWH/V0 |
17W |
5700K |
< 10% |
>0.95 |
0.075 Amps |
2.55kg |
VLC1169 |
VLCR/121/11/57/00/0.6M/IC/NWH/V0 |
11W |
5700K |
< 10% |
>0.95 |
0.048 Amps |
1.7kg |
