Indoor Commericial Lighting
PROTEUS STRIPES
Proteus Stripes

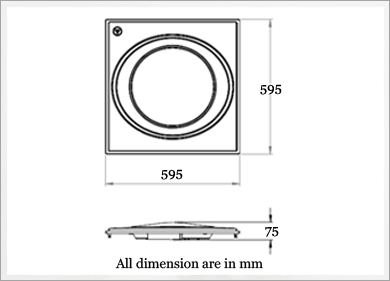

Dimension Details
Application
Description

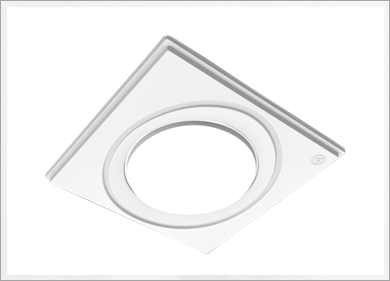

PROTEUS STRIPE, a new LED Recessed Luminaire from Venture that transforms ambient lighting into an exquisite balance of refined appearance and superior efficiency. When illuminated, the panel produces a perfectly even glow that delivers exceptionally uniform light to fill the space. While off, it appears completely free of a visible light source and seems to be an integral part of the ceiling. It is availaible in 25W , 30W & 36W in HL version.
Specifications & Features
Exclusively designed Injection molded housing body for excellent aesthetic and mechanical stability.
Diffuser is made of special diffusion material with high transmission, delivering effective light output with uniform light across entire face of the fixture without any hotspots or banding.
Rated life of L70, 60,000 Hrs @ Operating Temp Upto 40°C, to ensures uninterrupted long service life.
Excellent color rendering capabilities reveals true color of your surrounding space.
Superior lumen and color maintenance.
Best in class lumen per watt - more light for less cost.
In built electrical protections like over voltage, short circuit, over load, miswiring for additional safety precautions.
With high efficiency low power loss driver, system is maintained at cooler temperatures & leads to longer driver life.
The luminaire is rated for Efficacy >100 LPW& 120LPW, Pf >0.95 , THD <5%.
Colors available are Cool White and Neutral White.
*Proteus Stripes with PIR Sensor
Proteus Stripes can also be provided with PIR sensor. The luminaire with inbuilt PIR based motion sensor for ON/OFF & Dimming adds convenience by eliminating the need to manually turn lights on or off there adding comfort to the user’s life and also contributing towards significant energy savings.
Luminaire is integrated with PIR Sensor for ON/OFF/Dimming purpose for greater energy saving 0 to 100% Dimming Control.
Installation & Maintenance
Compatible with standard Armstrong ceiling with cut out dimension of 575 mm x 575 mm.
Luminaire can also be hanged from the clutch cabes for safety purpose.
Provision for chain mounting through four mounting bracket for easy installations.

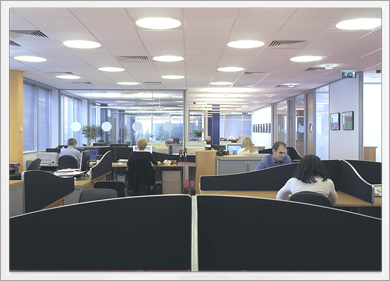

Applications
Office Interior & Hotels.
Museum display & Airport Terminals.
Hospitals & Clinics.
School & Lecturer Halls.
Electrical & Ordering Information
| Model / Ordering code |
Description |
System Wattage |
Color Temp |
THD |
Power Factor |
Mains Current |
Weight (Kg) |
| VLC1122 |
VLCR/116/25/57/00/N/NWH/V0 |
25W |
5700K |
< 10% |
>0.95 |
0.190 Amps |
3.6kg |
| VLC1123 |
VLCR/116/30/57/00/N/NWH/V0 |
30W |
5700K |
< 10% |
>0.95 |
0.95 Amps |
3.6kg |
| VLC1124 |
VLCR/116/36/57/00/N/NWH/V0 |
36W |
5700K |
< 10% |
>0.95 |
0.215 Amps |
3.6kg |
| VLC1125 |
VLCR/116/25/57/00/N/NWH/V0 |
25W |
5700K |
< 10% |
>0.95 |
0.240 Amps |
3.6kg |
| VLC1126 |
VLCR/116/25/57/00/N/NWH/V0 |
30W |
5700K |
< 10% |
>0.95 |
0.075A Amps |
3.6kg |
| VLC1127 |
VLCR/116/25/57/00/N/NWH/V0 |
36W |
5700K |
< 10% |
>0.95 |
0.048 Amps |
3.6kg |
*Also available in PIR Sensor & Human Centric Lighting also.
