SALVIA-4

LED Panel Edgelit
Salvia-4
 LED Panel Edgelit
Dimension Details
 LED Panel Edgelit

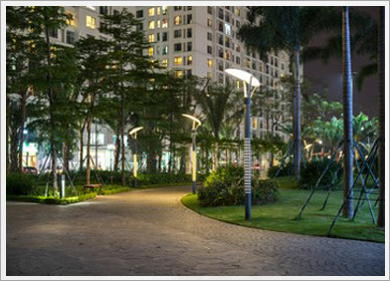

Application

Description

With the right illumination a city can be filled with safe and pleasant meeting place and to create the sense of security the role of post top lighting is important they act as omni directional source which is excellent for general lighting condition. Salvia-4 is a modern aesthetic luminaire with direct –indirect lighting with soft & soothing illumination. It distributes light through reflector fixed on a tripod stand with source not exposed to the viewer.

Specifications & Features

  • Salvia 4 is modern post top design luminaire
  • Post Top luminaire is available in 40W LED system.
  • Luminaire housing aluminium/grey powder coated finish spigot with toughened glass diffuser.
  • White powder coated reflector fixed on tripod directing the light downwards.
  • Rated life of L70 @ >50000 hours ensures uninterrupted long service life.
  • Color temperature of 5700K /3000K available & CRI >70
  • The surge protection of the luminaire is 4KV inbuilt & external surge 10KV.
  • Operating voltage 140V -270V & THD < 10% & Pf >0.95
  • The luminaire Electrical Safety Class I & IP65.
  • Luminaire mounting suitable for 100mm OD pipe
  • Luminaire is provided with all accessories with easy installation & serviceability.
  • Installation & Maintenance

  • Loose the M6 screws in the bottom of the Luminaire, connect the input wires to LEN connector, fix the luminaire to the pole dia 100 mm recommended, Tight the M6 screws and complete the installation.
  • Driver replacement- Easily remove the remote driver.
  • Applications

  • Landscapes & Parks
  • Pathways & Gardens
  • Walkways & Downtown
  • Compliance

  • IP 65
  • Class I
  • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLB6020 VLBP/611/40/57/NGG/V0 40W 5700K 0.175 Amps < 10% >0.95 7.5kg
    VLB6021 VLBP/611/40/30/NGG/V0 40W 3000K 0.175 Amps < 10% >0.95 7.5kg
    Lamp Enclosed Rated
