Application

Description

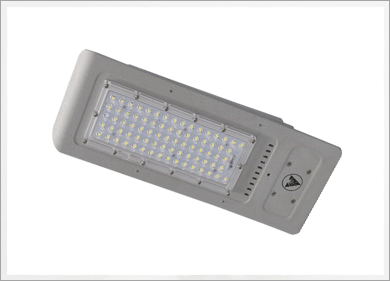

Venture Lighting brings yet another range of LED Street Light Series in effort to set high specification in lighting industry. We continue to impress and raise the bar on performance and reliability through its new addition, the VLI SHIELD street light. SHIELD outperforms its competitors by far through delivery of best in class specifications and durability. With its unrivalled lumen output and affordance in tandem with specialized optical distribution technology, SHIELD SL provides superior illumination, perfect for a wide variety of roadway and area lighting applications.

Specifications & Features

  • Carefully designed high-strength extruded powder coated aluminum-alloy housing, for better thermal dissipation.
  • Injection molded lens is made of special Polycarbonate material with high transmission index, delivering superior light output.
  • Rated life of L70 @ 50000 hours ensures uninterrupted long service life.
  • Color temperature of 5700K for brighter outdoor application.
  • Secondary lens used for asymmetric wide distribution, ideal for street light application.
  • With the use of special type IP connectors to ensure Ingress protection of IP65.
  • Best in class lumen per watt - more light for less cost.
  • Use of cable gland for wire connection allows air tight wire entry to housing.
  • In-built electrical protections like over voltage, short circuit, over load, miswiring for additional safety precautions.
  • With high efficiency low power loss driver, system is maintained at cooler temperature and leads to longer driver life.
  • Options are available in 30W, 60W, 100W and 150W LED Street Lighting.
  • Silicone gasket ensures both optical compartments are IP 65 protected.
  • Pre fixed with 1.5 mtr grounded AC power cord
  • Installation & Maintenance

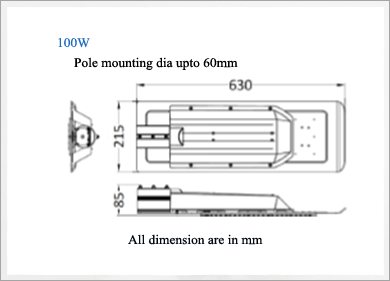

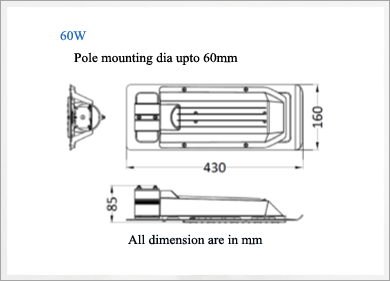

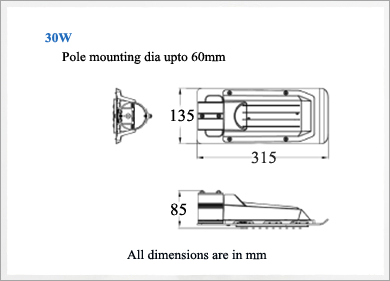

  • Compatible for pole mounting with pole outer diameter upto 60mm.
  • Fixture can be mounted with help of M6x16 Studs (2 no's) made of Stainless Steel.
  • Wiring through open 3 poles wires, 1.5 mtr grounded AC power cord.

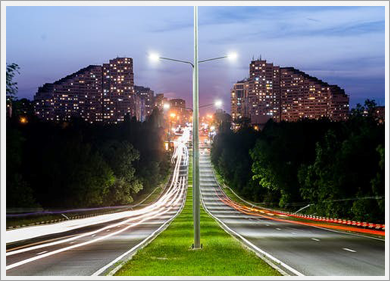

  • Applications

  • Street and Roadways
  • Highways and Overhead roads
  • Industrial parks
  • Commercial plaza
  • Parking lots
  • Compliance

  • IP 65
  • Class I
  • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLR4009 VLPRO/404/30/57/30/NGR/V0P 30W 5700K 0.111 AAmps < 10% >0.95 1.3kg
    VLR4010 VLPRO/404/60/57/30/NGR/V0P 60W 5700K 0.234 Amps < 10% >0.95 2.1kg
    VLR4011 VLPRO/404/100/57/30/NGR/V0P 100W 5700K 0.41 A Amps < 10% >0.95 3.2kg
    VLR4012 VLPRO/404/150/57/30/NGR/V0P 150W 5700K 0.626 Amps < 10% >0.95 5kg
    Lamp Enclosed Rated
