INDUSTRIAL LIGHTING

ALDER

LED Panel Edgelit
Alder
 LED Panel Edgelit
Dimension Details
 LED Panel Edgelit
Application

Description

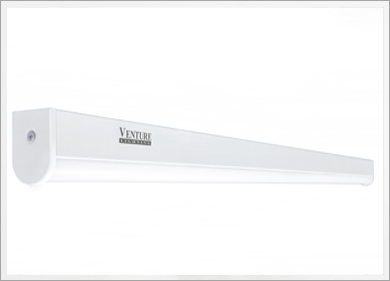

ALDER an Industrial Batten is LED lighting solution for surface mount industrial application, offered in 25W, 34W and 38W. A sturdy mechanical design specifically designed to suit industrial environment. Luminaire provides a high level of architectural flexibility through its mounting options viz conduit and suspension along with standard surface mounting. Carefully selected diffuser made of special grade lighting material helps provide maximum light output with ultimate uniformity. Thanks to its minimalistic design to enhance work place in industrial application. And hence it qualifies as perfect green product from the Venture Lighting family.

Alder product comes with 25W in 130 LPW , 34 W in 120 LPW and 38W in 115 LPW.

Specifications & Features

  • Minimalistic designed CRCA housing body for excellent mechanical stability.
  • Diffuser is made of special diffusion material with high transmission, delivering effective light output without any dark or bright patch.
  • Rated life of L70 @ 50000 hours ensures uninterrupted long service life.
  • Excellent color rendering capabilities reveals true color of your surrounding space.
  • Superior lumen and color maintenance.
  • Best in class lumen per watt - more light for less cost.
  • In built electrical protections like over voltage, short circuit, over load, miswiring for additional safety precautions.
  • With high efficiency low power loss driver, system is maintained at cooler temperatures and leads to longer driver life.
  • Options available in 25W, 34W and 38W LED Industrial Lighting (IL).
  • Installation & Maintenance

  • Direct/Surface Mounting through 2 No of M4 Screws with pitch of 900mm.
  • Provision for conduit and suspension mounting also available.

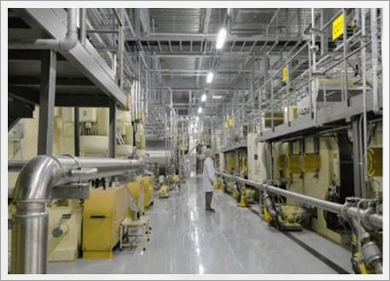

  • Applications

  • Warehouses
  • Rolling mills
  • Assembly lines
  • Workshops
  • Generator rooms, Healthcare
  • Schools
  • Compliance

  • IP 20
  • Class I
  • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLI3000 VLIS/300/25/57/30/NWH/V0 25W 5700K 0.11 Amps < 10% >0.95 2.5kg
    VLI3001 VLIS/300/34/57/20/NWH/V0 34W 5700K 0.16 Amps < 10% >0.95 2.5kg
    VLI3002 VLIS/300/38/57/15/NWH/V0 38 W 5700K 0.18 Amps < 10% >0.95 2.5kg
    Lamp Enclosed Rated
