AVENS FLOOD

LED Panel Edgelit

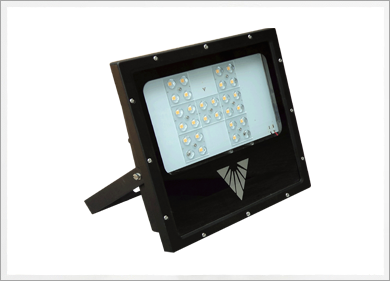

Avens flood
LED Panel Edgelit

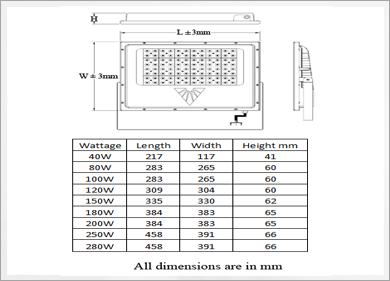

Dimension Details
LED Panel Edgelit

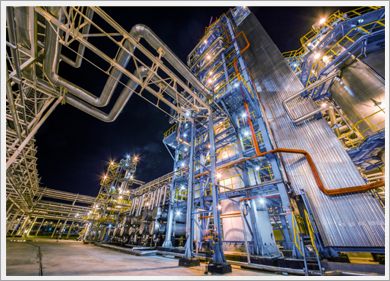

Application

Description

To meet the lighting needs for area lighting, billboards and façade lighting, Venture offer LED flood, a real alternative to HID luminaires in the form of AVENS for high-power and large area lighting applications. Superior design approach offers flexibility to light up different areas with different lighting needs. “ AVENS ” uses cutting edge LED technology along with innovative heat sink and unique heat management technology to offer a very reliable product.

Specifications & Features

  • Options are available in 40W to 280W with best in class Lumen per watt– more light for less cost. Available with efficacy >100LPW.
  • System efficacy>100 LPW, providing >50% energy savings over traditional lighting fixtures.
  • Elegantly designed light and gear compartment made in pressure die cast and powder coated for excellent finish and aesthetics.
  • Uniform thermal distribution of the LED light engine, providing superior lumen maintenance (L70 > 50k hours)*
  • High Efficacy LED advance LED technology with LM 80 certified.
  • Secondary lens on LED offers a wide variety of light distribution to suite appropriate flood applications.
  • Composed of high performance optical grade material lenses to achieve desired distribution for lighting application.
  • Tempered Protective Toughened glass, thermal shock and impact resistant fixed to the housing with SS screws.
  • Internal surge 4KV inbuilt and external upto 10KV optional.
  • Using high heat conductivity material which increases heat dissipation speed.
  • Silicone gasket for IP66 protection.
  • Provision to tilt 70 degrees either side for flexibility in mounting application. Also suitable for billboard application.
  • Sturdy CRCA cradle will ensure rigid mounting in area lighting environment.

    • Installation & Maintenance

  • Ground/ Wall/ Ceiling Mounting suitable for M8 Bolt (2 No) with pitch of 85mm
  • Aim the fixture by accessing M8 & M6 Bolts through adjustable cradle.

    • Applications

  • Large & Small Area Lighting
  • Advertisement Billboard
  • Indoor Sports
  • Outdoor Sports
  • Aprons , Dockyards
  • Switchyards

    • Compliance

  • IP 66
  • Class I

    • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLF5040 VLFS/510/40/57/00/NBK//V0 40W 5700K 0.130 A < 10% >0.95 1.2kg
    VLF5041 VLFS/510/80/57/00/NBK//V0 80W 5700K 0.350 A < 10% >0.95 3kg
    VLF5042 VLFS/510/100/57/00/NBK//V0 100 W 5700K 0.430 A < 10% >0.95 3kg
    VLF5043 VLFS/510/120/57/00/NBK//V0 120W 5700K 0.520 A < 10% >0.95 3.8kg
    VLF5044 VLFS/510/150/57/00/NBK//V0 150W 5700K 0.650 A < 10% >0.95 4.9kg
    VLF5045 VLFS/510/180/57/00/NBK//V0 180W 5700K 0.780 A < 10% >0.95 5.9kg
    VLF5046 VLFS/510/200/57/00/NBK//V0 200W 5700K 0.877 A < 10% >0.95 5.9kg
    VLF5047 VLFS/510/250/57/00/NBK//V0 250W 5700K 1.096 A < 10% >0.95 8kg
    VLF5048 VLFS/510/280/57/00/NBK//V0 280W 5700K 1.228 A < 10% >0.95 8kg
    Lamp Enclosed Rated
