CLEAN ROOM LED FIXTURE

LED Panel Edgelit
Clean Room LED Fixture
LED Panel Edgelit

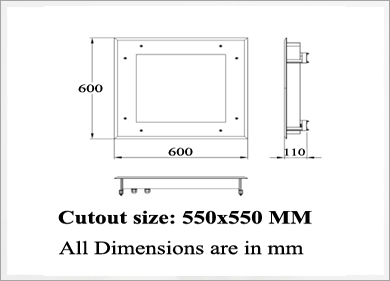

Dimension Details
LED Panel Edgelit

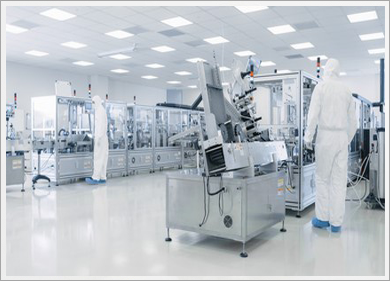

Application

Description

Clean Room Lighting solution is available in 36W, 45W & 60W in 2ftx2ft version. LED clean room is hygienic, efficient solution offered in food industries, pharma, hospitals & labs, chemical & production facilities. Clean room luminaire is energy efficient, quick maintenance and enhanced lighting product which use high efficacy LEDs that save energy up to 55% and reduce the operational cost significantly.

Specifications & Features

  • CRCA powder-coated housing, bottom frame and reflector.
  • Surface finish in epoxy polyester powder-coating lends higher corrosion resistance & life long finish.
  • High Efficiency Translucence polystyrene diffused diffuser sealed with bottom frame using non-hygroscopic gasket.
  • Bottom frame fixed to the housing with captive (loss proof) screws.
  • Adjustable clamp mechanism for perfect bottom frame alignment.
  • Provided with loop in loop out provision for wiring & connection.
  • Excellent heat dissipation through special design of high thermal conductivity Metal Core PCB & housing.
  • Rated life of L70 @ 50000 hours ensures uninterrupted long service life.
  • Multistage isolated Constant Current driver with operating voltage range of 110V-280VAC with 4KV inbuilt surge protection.
  • Driver pre-wired up to terminal block
  • Cleanroom applications Conforms to IS10322.

    • Installation & Maintenance

  • Recess mounting suitable for 550 mmx550mm cut out dimension.
  • Provided with loop in loop out provision for wiring & connection.
  • Provided with height adjustable clamp (up to 75mm) mechanism for proper fixing and alignment.
  • Easy Maintenance through bottom opening of luminaire.

    • Applications

  • Food Industries,Pharma Industries
  • Hospitals& Labs
  • Production& Garment Facilities
  • Petrol &Chemical Industries

    • Compliance

  • IP 54
  • Class I

    • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLI3079 VLIR/314/36/57/00/BM/NWH/V0 36W 5700K 0.197 Amps < 10% >0.95 6.05kg
    VLI3080 VLIR/314/45/57/00/BM/NWH/V0 45W 5700K 0.263 Amps < 10% >0.95 6.05kg
    VLI3081 VLIR/314/60/57/00/BM/NWH/V0 60 W 5700K 0.315 Amps < 10% >0.95 6.285kg
    Lamp Enclosed Rated
