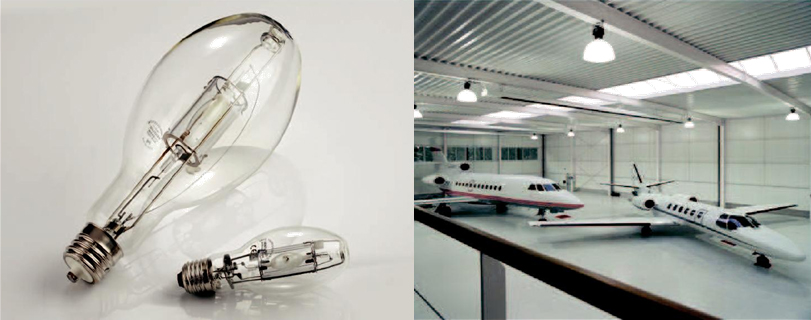

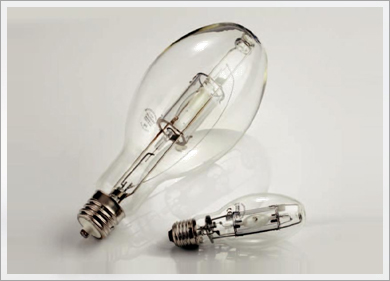

Open Rated

Elliptical Lamp

Lamp Enclosed Rated

Applications

  • Warehouses
  • Amenity lighting
  • Parking lots
  • Foundries
  • Parking garages
  • Assembly shops
  • Features

  • High energy savings
  • High lumen efficiency
  • Longer life (upto 20,000 hrs)
  • Retrofit versions for HPS/HPMV lamps
  • Better cold starting
  • UV shield available
  • Enclosed Rated Lamps

    Description Part code Initial Lumens* Avg. Life Hours* Color Temp. CRI LPW Burn Position Operating current(A) Carton Qty Control Gear Base
    HIPE 70 W/C/U/LU/UVS/737 10003 5000 15000 3700 70 71 Universal 0.90 12 MH / HPSV E27
    HIPE 70 W/C/U/LU/UVS/732 52910 5000 15000 3200 70 71 Universal 0.90 12 MH / HPSV E27
    HIPE 150 W/C/U/LU/UVS/737 10007 12600 15000 3700 70 84 Universal 1.80 12 MH / HPSV E27
    HIPE 150 W/C/U/LU/UVS/740 10006 13300 15000 4000 68 89 Universal 1.80 12 MH / HPSV E27
    Lamp Enclosed Rated
    Description Part code Initial Lumens* Avg. Life Hours Color Temp. CRI LPW Burn Position Operating current(A) Carton Qty Control Gear Base
    HIPE 150W/C/U/LU/E90/UVS/737 10082 12600 15000 3700 70 84 Universal 1.80 12 MH / HPSV E40
    HIPE 150 W/U/LU/E90/UVS/740 10051 13300 15000 4000 68 89 Universal 1.80 12 MH / HPSV E40
    HIPE 250 W/C/HBU/LU/UVS/737 10076 20000 20000 3700 70 80 Base Up ± 90* 3.10 12 MH / HPSV E40
    HIPE 250 W/C/V/UVS/PS/737 10014 23000 20000 3700 70 92 Base Up ± 15* 2.10 12 MH / HPMV E40
    HIPE 400 W/C/V/LU/UVS/737 10043 40000 20000 3700 70 91 Base Up ± 15* 4.00 6 MH / HPSV E40
    HIPE 400 W/C/V/UVS/EL/PS/737 10041 40000 30000 3700 70 100 Base Up ± 15* 3.20 6 MH / HPMV E40
    HIPE 400 W/ V/LU/UVS/740 10077 42000 20000 4000 68 95 Base Up ± 15* 4.00 6 MH / HPSV E40
    Lamp Enclosed Rated

    * When operated in vertical burn position
