HID Lighting

Control Gear Box

Accessories

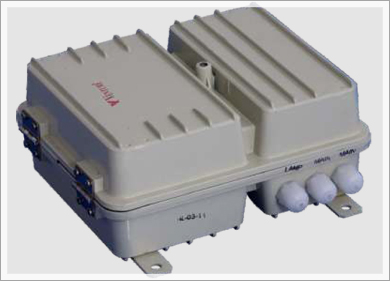

BALLAST CLASS ‘B’

Applications

  • Non-integral flood lights
  • Non-integral Industrial luminaries
    • BALLAST CLASS ‘B’

    Construction

  • Pressure Die Cast aluminium corrosion resistant housing fitted with copper wound ballast, PF correction capacitor and electronic ignitor are prewired upto terminal block.
  • Epoxy Powder coated painting
  • Synthetic rubber gasket
  • Earthing terminal
  • Porcelain rewireable fuse cutout
  • IP 65 protection
    • Part No Lamp Type Lamp Qty Wattage Nominal Rated Voltage A B C
    VL/CGB-150W MH / SV 1 150 220 / 240 215 120 275
    VL/CGB-200W MH 1 200 220 / 240 215 120 275
    VL/CGB-250W MH / SV 1 250 220 / 240 215 120 275
    VL/CGB-320W MH 1 320 220 / 240 215 120 275
    VL/CGB-400W MH / SV 1 400 220 / 240 215 120 275
    Lamp Enclosed Rated
    * MH/MV configuration for 250 & 400 W is also available

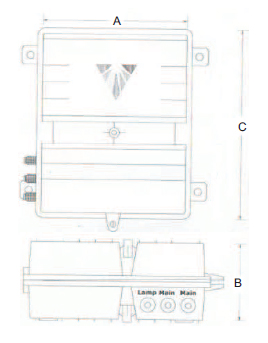

    Dimensions (mm) +/- 5%

    Control Gear Box - Accessories

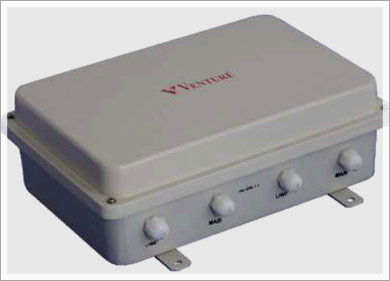

    BALLAST CLASS ‘B’

    Applications

  • Non-integral flood lights
  • Non-integral Industrial luminaries
    • BALLAST CLASS ‘B’

    Construction

  • Cast aluminium corrosion resistant housing fitted with copper wound ballast, PF correction capacitor and electronic ignitor are prewired upto terminal block.
  • Epoxy Powder coated painting
  • Synthetic rubber gasket
  • Earthing terminal
  • Porcelain rewireable fuse cutout
  • IP 65 protection
    • Part No Lamp Type Lamp Qty Wattage Nominal Rated Voltage A B C
    VL/CGB-2X150W MH / SV 2 150 220 / 240 395 135 290
    VL/CGB-2X200W MH 2 200 220 / 240 395 135 290
    VL/CGB-2X250W MH / SV 2 250 220 / 240 395 135 290
    VL/CGB-2X320W MH 2 320 220 / 240 395 135 290
    VL/CGB-2X400W MH / SV 2 400 220 / 240 395 135 290
    Lamp Enclosed Rated
    * MH/MV configuration for 250 & 400 W is also available

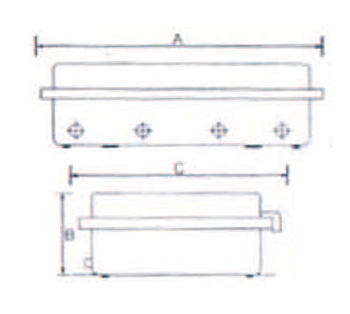

    Dimensions (mm) +/- 5%

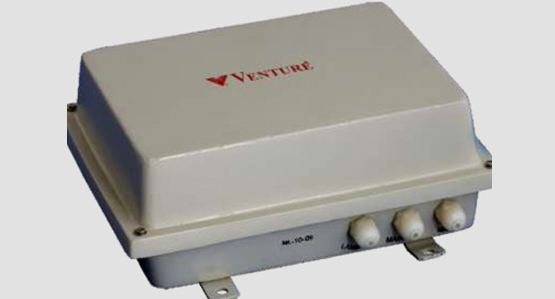

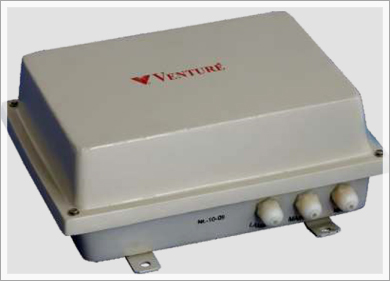

    Control Gear Box - Accessories

    BALLAST CLASS ‘B’

    Applications

  • Non-integral flood lights
  • Non-integral Industrial luminaries
    • BALLAST CLASS ‘B’

    Construction

  • Cast aluminium corrosion resistant housing fitted with copper wound ballast, PF correction capacitor and electronic ignitor are prewired upto terminal block.
  • Epoxy Powder coated painting
  • Heat resistant EPR gasket
  • Porcelain rewireable fuse cutout
  • IP 65 protection
    • Part No Lamp Type Lamp Qty Wattage Nominal Rated Voltage A B C
    VL/CGB - 1000W MH/SV 1 1000 210 / 220 / 230 / 240 280 155 255
    Lamp Enclosed Rated

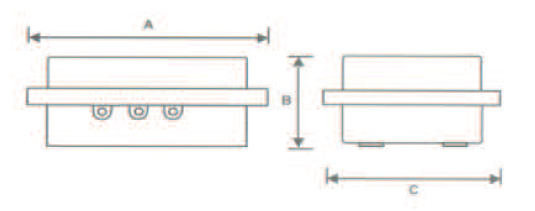

    Dimensions (mm) +/- 5%

    Control Gear Box - Accessories

    BALLAST CLASS ‘B’

    Applications

  • Non-integral flood lights
  • Non-integral Industrial luminaries
    • BALLAST CLASS ‘B’

    Construction

  • Cast aluminium corrosion resistant housing fitted with copper wound ballast, PF correction capacitor and electronic ignitor are prewired upto terminal block.
  • Epoxy Powder coated painting
  • Heat resistant EPR gasket
  • Porcelain rewireable fuse cutout
  • IP 65 protection
    • Part No Lamp Type Lamp Qty Wattage Nominal Rated Voltage A B C D E F
    VL/CGB-1500W MH 1 1500 380 / 400 / 415 385 230 190 247 200 Ø:11
    VL/CGB-2000W MH 1 2000 380 / 400 / 415 385 230 190 247 200 Ø:11
    Lamp Enclosed Rated

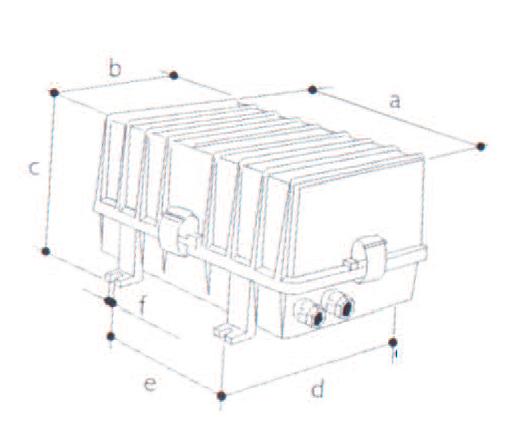

    Dimensions (mm) +/- 5%
