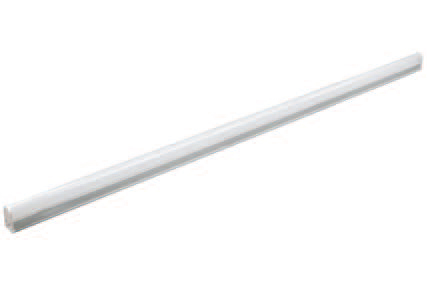

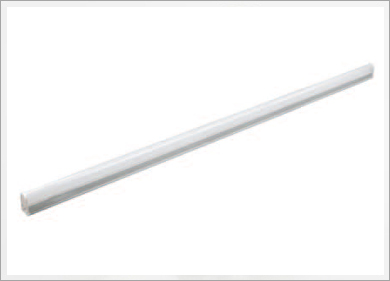

T5 Integrated LED Tube Batten

Linero T5

 Linero T5
 Linero T5
 Linero T5

Specifications & Features

  • Extruded aluminum batten with highly efficient PC Opal Diffuser.
  • High energy saving Vis a Vis Traditional fluorescent - 35% compared to T5 FTL fixture.
  • Direct power supply port with feasibility for series connection
  • Over load, over voltage, short circuit and reverse polarity protection
  • Integrated constant current driver with PF > 95%
  • More than 85% driver efficiency with < 20% Current THD
  • Equipped with 2.5KV Surge Protection
  • Wide operating voltage 100 - 277Vac
  • Color Rendering Index (CRI) > 80
  • Working ambient temperature -20°C to + 45°C
  • Rated Life 50,000Hrs (Ta= 30°C @ L70)
  • High intensity of illumination with 120°beam angle
  • Uniform diffuse & excellent glare control
  • Instant start without flash & humming
  • Electric wave & radio interference free
  • Without mercury,UV & IR radiation
  • IP 20 Ingress Protection
  • Applications

  • Offices
  • Institutions
  • Hospitality
  • Residential Lighting
  • Departmental Stores
  • Factories
  • Installation & Maintenance

  • Mounted with wall mounting bracket
  • Power Supply should be disconnected before service
  • Technical & Ordering Information

    Product ID / Ordering Code Product Description Wattage(W) Nominal Voltage(V) Mains Current(A) CCT (K) Lumen (lm)
    VL/ITL-T5-LED01065 Linero Integrated T5 LED batten 10/CW L600 10 230 0.045 6500 900
    VL/ITL-T5-LED01865 Linero Intergated T5 LED batten 18/CW L1200 18 230 0.082 6500 1800
    Lamp Enclosed Rated

    * XX Also available in 3000K & 4000K CCTs
