LED Lighting

LED Ceiling Light

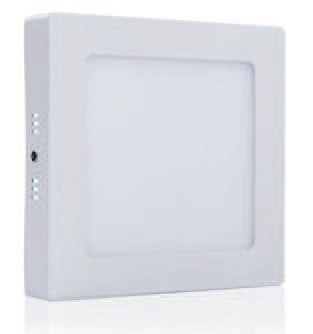

Noah Flush Square

 Noah Flush Square
 Noah Flush Square
 Noah Flush Square

Specifications & Features

  • Die cast aluminum housing with highly efficient PMMA / Opal Diffuser.
  • High energy saving Vis a Vis Traditional fluorescent-60% compared to CFL/PLC Luminaires
  • External constant current driver
  • More than 85% driver efficiency
  • Wide operating voltage 100 - 277Vac
  • Color Rendering Index (CRI) > 80
  • Working ambient temperature -20°C to + 45°C
  • Rated Life 50,000Hrs (Ta= 30°C @ L70)
  • High intensity of illumination with 120°beam angle
  • Uniform diffuse & excellent glare control
  • Instant start without flash & humming
  • Electric wave & radio interference free
  • Without mercury,UV & IR radiation
  • IP 20 Ingress Protection

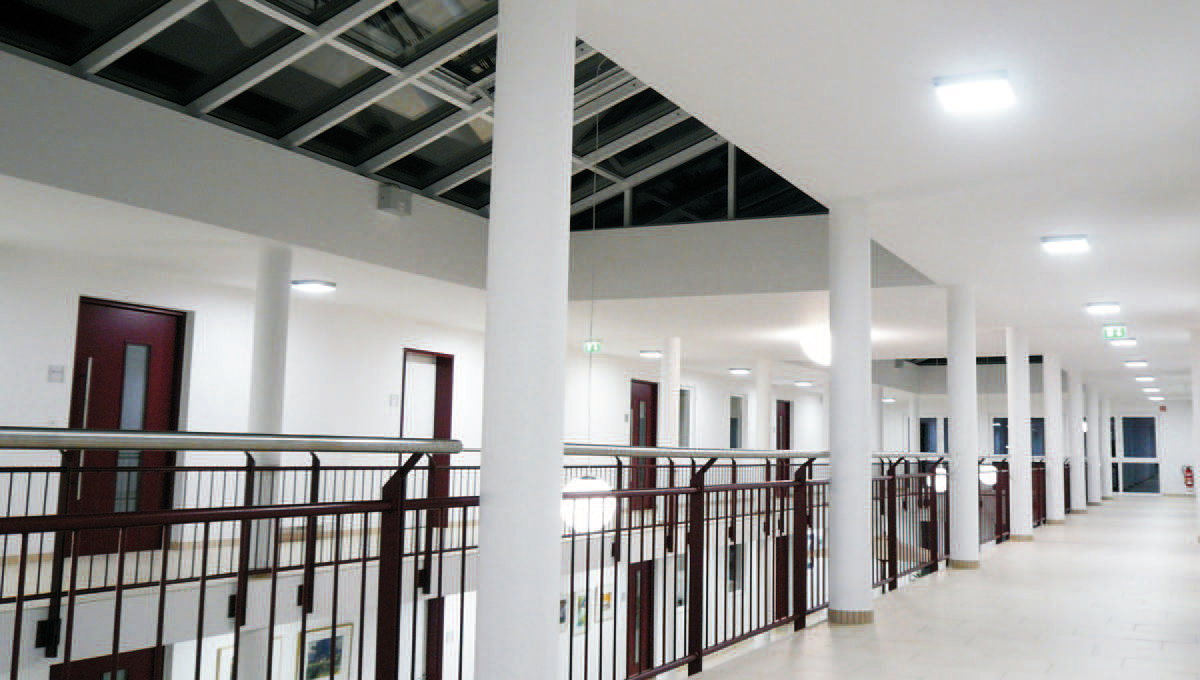

  • Applications

  • Corridor
  • Kitchen
  • Hotels
  • Portico Lighting
  • Wall Lighting
  • Hospitality
  • Office
  • Installation & Maintenance

  • Feasible for Surface mounting
  • Power Supply should be disconnected before service.
  • Technical & Ordering Information

    Product ID / Ordering Code Product Description Wattage(W) Nominal Voltage(V) Mains Current(A) CCT (K) Lumen (lm)
    VL/CLS-008-LED00765 Noah flush Sq LED Ceiling light 07/ CW 7 230 0.033 6500 560
    VL/CLS-008-LED01265 Noah flush Sq LED Ceiling light 12/ CW 12 230 0.057 6500 960
    VL/CLS-008-LED01565 Noah flush Sq LED Ceiling light 15/ CW 15 230 0.070 6500 1200
    VL/CLS-008-LED01865 Noah flush Sq LED Ceiling light 18/ CW 18 230 0.085 6500 1450
    VL/CLS-008-LED02465 Noah flush Sq LED Ceiling light 24/ CW 24 230 0.115 6500 1950
    Lamp Enclosed Rated

    * XX Also available in 3000K & 4000K CCTs
