LED Flood Light

Alfa COB

 Alfa COB
 Alfa COB
 Alfa COB

Specifications & Features

  • Die cast aluminum housing with toughened glass cover concealed with high temp resistance silicon rubber gasket
  • 60% energy saving vs Conventional HID Flood light
  • Over load, over voltage & short circuit protection
  • Isolated constant current driver with PF > 95%
  • More than 85% driver efficiency with < 10% Current THD
  • Equipped with 10KV Surge suppression Protection
  • Wide operating voltage 100 - 285V
  • Color Rendering Index (CRI) > 70
  • Working ambient temperature -20°C to + 50°C
  • Rated Life 50,000Hrs (Ta= 30°C @ L70)
  • High intensity of illumination with 90°view angle
  • Secondary lenses used for desired light distribution
  • Flicker free instant start electronic operation
  • Electric wave & radio interference free
  • Without mercury, UV & IR radiation
  • Class I Electric Strength
  • IP 65 Ingress Protection
  • Applications

  • Building Facade
  • Construction Sites
  • Industrial areas

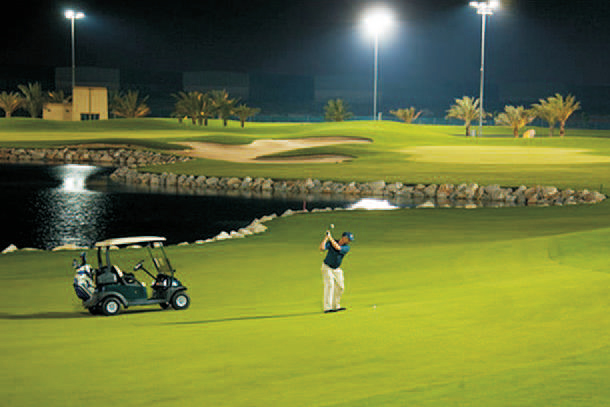

  • Sport Lighting
  • Security Lighting
  • Shopping mall
  • Mast Lighting
  • Yard Lighting
  • Installation & Maintenance

  • Mounted with bracket /cradle on any rigid surface
  • Power Supply should be disconnected before service.
  • Technical & Ordering Information

    Product ID / Ordering Code Product Description Wattage(W) Nominal Voltage(V) Mains Current(A) CCT (K) Lumen (lm)
    VL/FDL-602-LED05050 Alfa LED Flood Light COB 50/CW IP 65 50±2% 230 0.225 5000 4500
    VL/FDL-602-LED09050 Alfa LED Flood Light COB 90/CW IP 65 90±2% 230 0.410 5000 8100
    VL/FDL-602-LED10050 Alfa LED Flood Light COB 100/CW IP 65 100±2% 230 0.450 5000 9000
    VL/FDL-602-LED12050 Alfa LED Flood Light COB 120/CW IP 65 120±2% 230 0.540 5000 11200
    VL/FDL-602-LED15050 Alfa LED Flood Light COB 150/CW IP 65 150±2% 230 0.680 5000 14250
    VL/FDL-602-LED20050 Alfa LED Flood Light COB 200/CW IP 65 200±2% 230 0.915 5000 19000
    Lamp Enclosed Rated

    * xx also available in 3000K, 4000K & 6500K CCTs on request.
