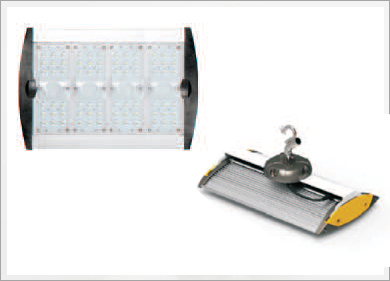

LED High Bay Light
Titan HVAC
Specifications & Features
Extruded Aluminum housing and die cast Aluminum end frames with highly efficient optical grade Polymer acrylic lenses.
50% energy saving Vis a Vis Conventional HID Bay light.
Unique driverless system for high reliability
Integrated LED Chips and components in module with PF > 95%
Equipped with 4KV Surge suppression Protection
Innovative AC voltage technology
Wide voltage range 180 - 270V
Color Rendering Index (CRI) >= 75
Working ambient temperature -25°C to + 50°C
Rated Life 50,000Hrs (Ta= 30°C @ L70)
High intensity of illumination with 60°x 135°view angle
Uniform diffuse & excellent glare control
Flicker free instant start electronic operation
Electric wave & radio interference free
Without mercury,UV & IR radiation
Class I Electric Strength.
IP 65 Ingress Protection

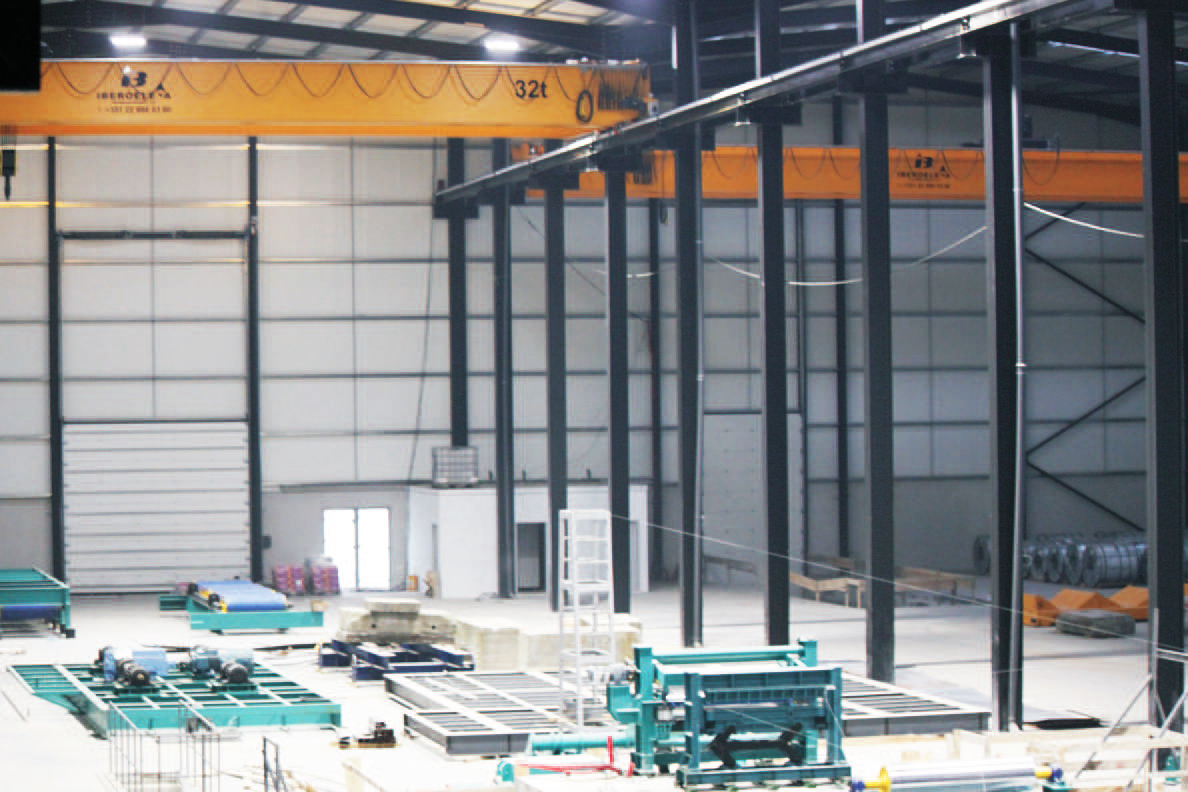

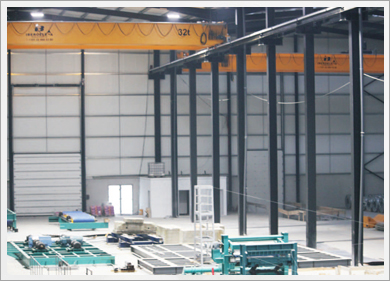

Applications
Factory
Warehouse
Industrial areas
Super Market
Assembly shop floor
Installation & Maintenance
Mounting with hook, chain or Cable
Power Supply should be disconnected before service

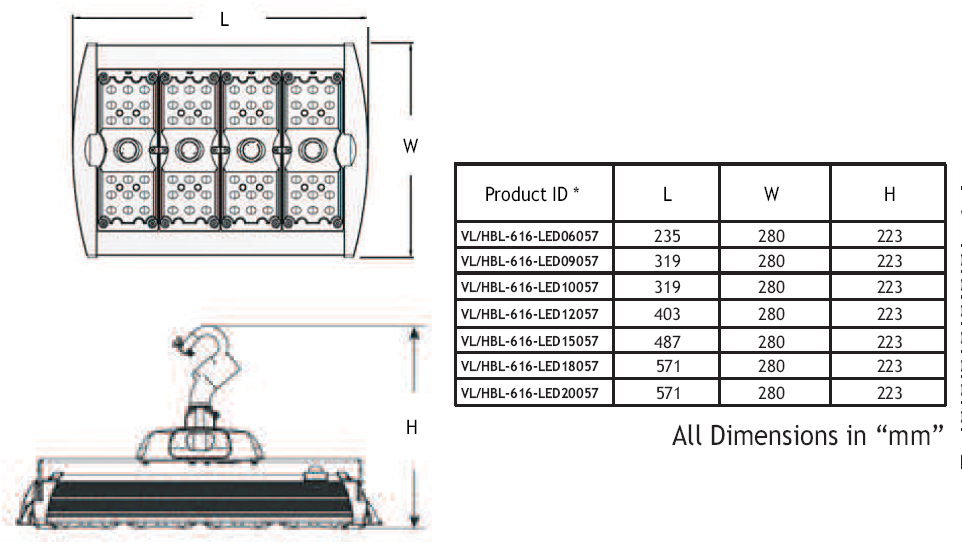

Technical & Ordering Information
Product ID / Ordering Code |
Product Description |
Wattage(W) |
Nominal Voltage(V) |
Mains Current(A) |
CCT (K) |
Lumen (lm) |
VL/HBL-616-LED06057 |
Titan HVAC LED High Bay 60/CW IP 65 |
60 |
230 |
0.274 |
5700 |
6000 |
VL/HBL-616-LED09057 |
Titan HVAC LED High Bay 90/CW IP 65 |
90 |
230 |
0.410 |
5700 |
9000 |
VL/HBL-616-LED10057 |
Titan HVAC LED High Bay 100/CW IP 65 |
100 |
230 |
0.455 |
5700 |
9500 |
VL/HBL-616-LED12057 |
Titan HVAC LED High Bay 120/CW IP 65 |
120 |
230 |
0.540 |
5700 |
12000 |
VL/HBL-616-LED15057 |
Titan HVAC LED High Bay 150/CW IP 65 |
150 |
230 |
0.680 |
5700 |
14000 |
VL/HBL-616-LED18057 |
Titan HVAC LED High Bay 180/CW IP 65 |
180 |
230 |
0.820 |
5700 |
18000 |
VL/HBL-616-LED20057 |
Titan HVAC LED High Bay 200/CW IP 65 |
200 |
230 |
0.915 |
5700 |
19000 |
