Specifications & Features

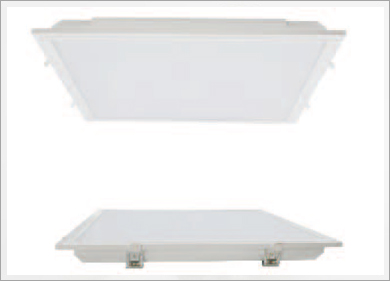

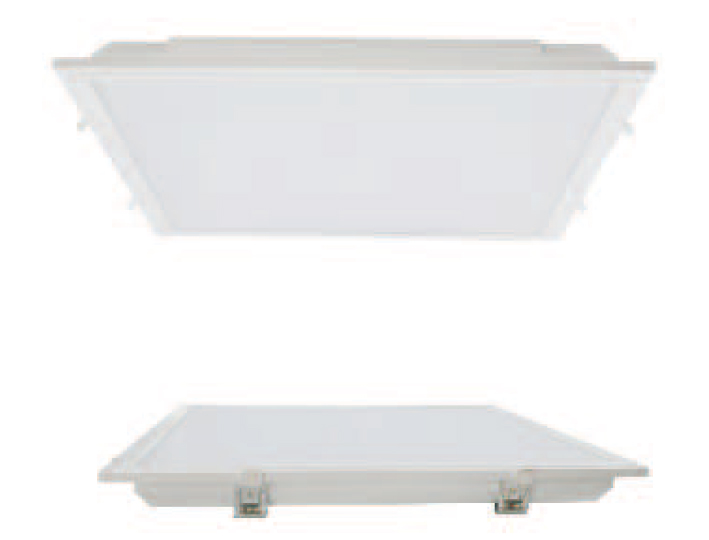

Integrated injection thermo-bio plastic housing frame with highly efficient PP Opal diffuser.
High energy saving Vis a Vis conventional fluorescent-50% compared to 2x PLL CFLs.
Built-in Constant current driver with > 95% power factor
More than 85% driver efficiency with <15% current THD
Wide operating voltage 100 - 277Vac
Color Rendering Index (CRI) > 80
Working ambient temperature -10°C to + 45°C
Rated Life 50,000Hrs (Ta= 35°C @ L70)
High intensity of illumination with 120°beam angle
Uniform diffuse & excellent glare control
Instant start without flash & humming
Electric wave & radio interference free
Free of Mercury,UV & IR radiation
IP 20 Ingress Protection

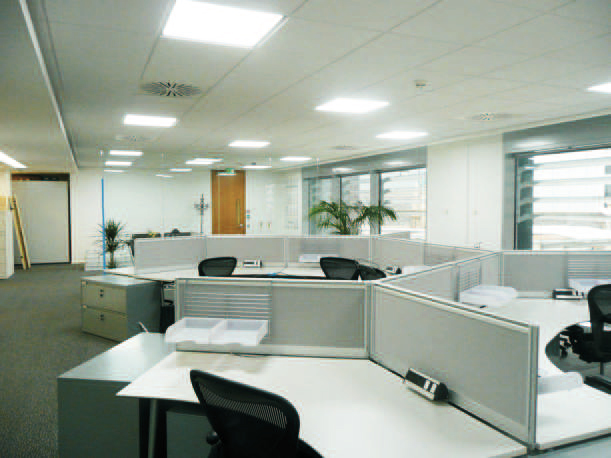

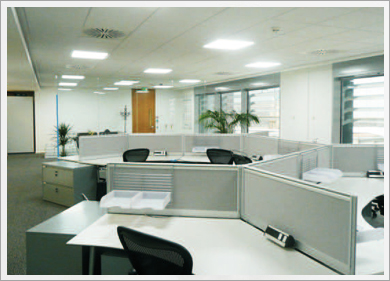

Applications
Hotels
Offices
Conference Hall
Assembly Floor
Institutional Buildings
Educational Institute
Hospitals
Installation & Maintenance
Feasible for Recess & Suspension mounting
Suitable for Grid ceiling
Surface Ceiling mounting using additional mounting clamps
POP & Gypsum Ceiling mounting using additional mounting clamps
Power supply should be disconnected before service
Technical & Ordering Information
| Product ID / Ordering Code |
Product Description |
Wattage(W) |
Nominal Voltage(V) |
CCT (K) |
Lumen (lm) |
Current (A) |
| VL/PNL-203-LED04030 |
Cubic LED Panel 40/ WW L600 |
40 |
230 |
3000 |
3500 |
0.18 |
| VL/PNL-203-LED04040 |
Cubic LED Panel 40/ NW L600 |
40 |
230 |
4000 |
3900 |
0.18 |
| VL/PNL-203-LED04060 |
Cubic LED Panel 40/ CW L600 |
40 |
230 |
6500 |
3900 |
0.18 |
| VL/PNL-203-LED06030 |
Cubic LED Panel 60/ WW L600 |
60 |
230 |
3000 |
4800 |
0.27 |
| VL/PNL-203-LED06040 |
Cubic LED Panel 60/ NW L600 |
60 |
230 |
4000 |
5100 |
0.27 |
| VL/PNL-203-LED06060 |
Cubic LED Panel 60/ CW L600 |
60 |
230 |
6500 |
5100 |
0.27 |
