LED Panel Light

Edgelit

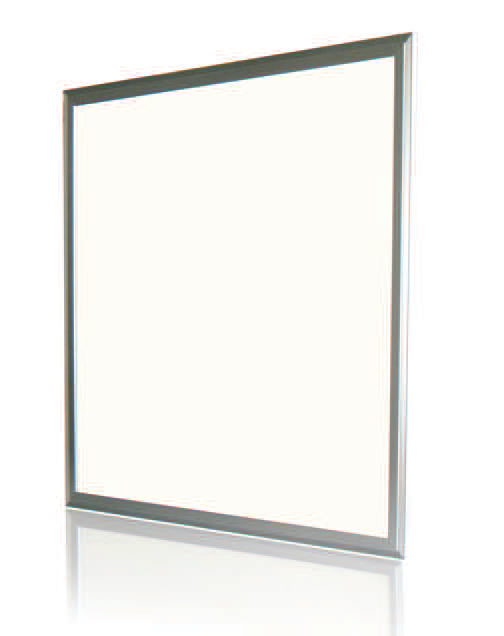

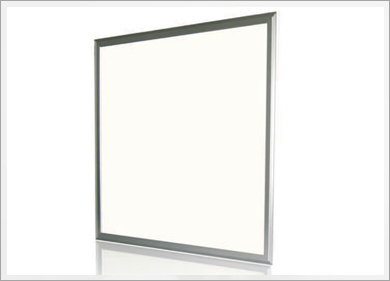

LED Panel Edgelit
 LED Panel Edgelit
 LED Panel Edgelit

Specifications & Features

  • Ultra Slim design with extruded anodized Aluminum frame and highly efficient PMMA / Opal Diffuser.
  • High energy saving Vis a Vis conventional fluorescent-50% compared to 2x36W PLL & 30% compared to 4x14W TL5
  • External constant current driver with > 95% power factor
  • More than 85% driver efficiency with < 15% current THD
  • Wide operating voltage 100 - 277Vac
  • Color Rendering Index (CRI) > 80
  • Working ambient temperature -20°C to + 45°C
  • Rated Life 50,000Hrs (Ta= 35°C @ L70)
  • High intensity of illumination with 120°beam angle
  • Uniform diffuse & excellent glare control
  • Instant start without flash & humming
  • Electric wave & radio Interference free
  • Free of Mercury,UV & IR radiation
  • IP 20 Ingress Protection

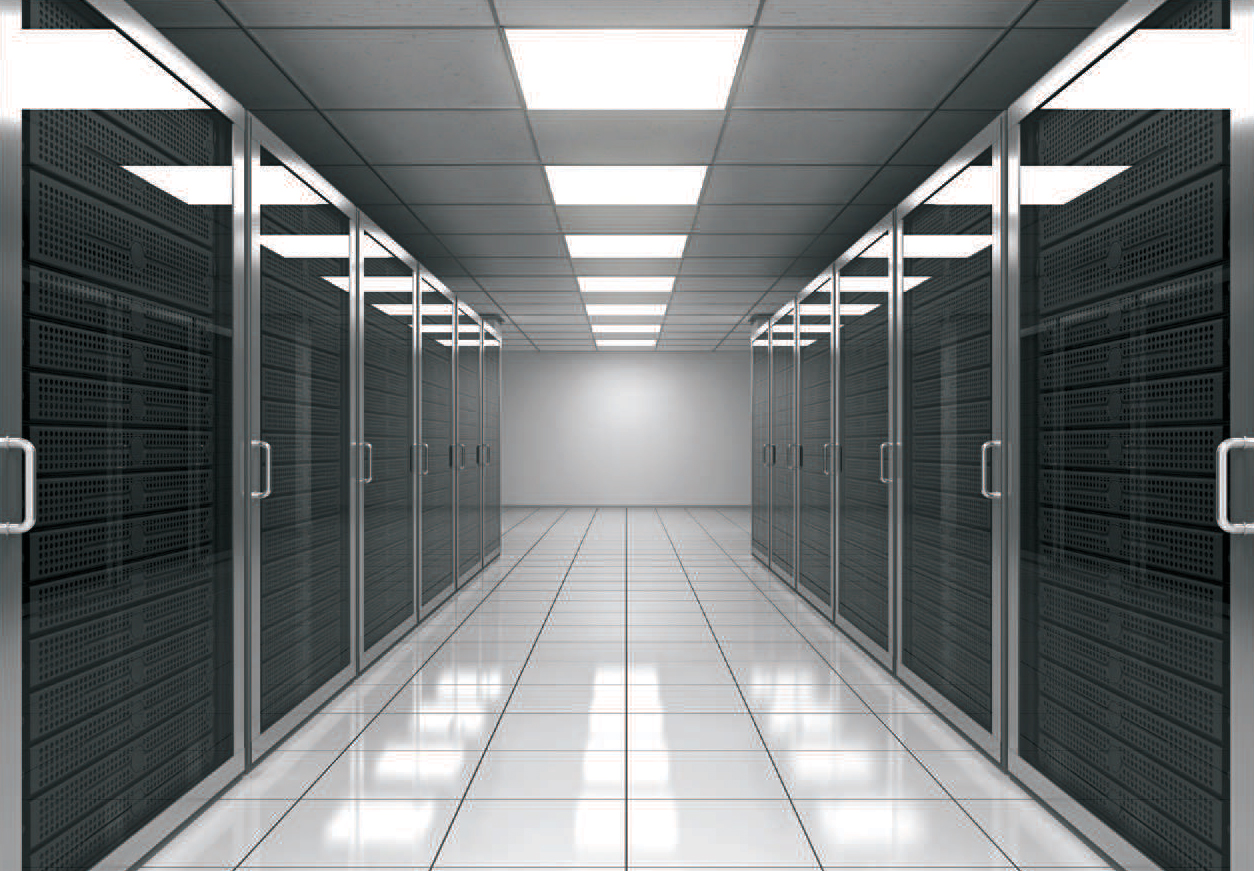

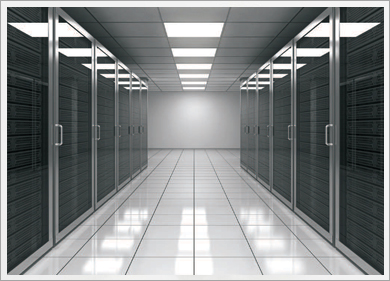

  • Applications

  • Hotels
  • Conference / Meeting rooms
  • Offices
  • Commercial Purposes
  • Institutional Buildings
  • Educational Institute
  • Hospitals
  • Installation & Maintenance

  • Feasible for Surface,Recess & Suspension mounting
  • Suitable for Grid ceiling
  • Surface, POP & Gypsum Ceiling mounting using additional mounting clamps
  • Power supply should be disconnected before service
  • Technical & Ordering Information

    Product ID / Ordering Code Product Description Wattage(W) Nominal Voltage(V) CCT (K) Lumen (lm) Current (A)
    VL/PNL-102-LED03630 Edgelit LED Panel 36/ WW L600 36 230 3000 2880 0.16
    VL/PNL-102-LED03640 Edgelit LED Panel 36/ NW L600 36 230 4000 3100 0.16
    VL/PNL-102-LED03657 Edgelit LED Panel 36/ CW L600 36 230 6500 3100 0.16
    VL/PNL-102-LED04030 Edgelit LED Panel 40/ WW L600 40 230 3000 3200 0.18
    VL/PNL-102-LED04040 Edgelit LED Panel 40/ NW L600 40 230 4000 3500 0.18
    VL/PNL-102-LED04057 Edgelit LED Panel 40/ CW L600 40 230 6500 3500 0.18
    Lamp Enclosed Rated
