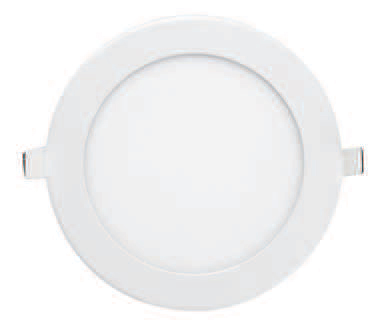

LED Panel Light

PDF Version

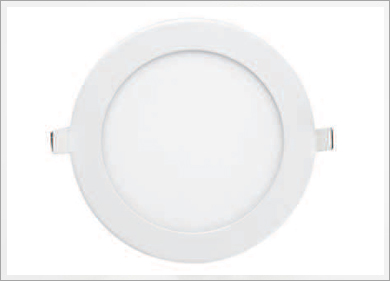

Slim Round

Slim Round
Slim Round
Slim Round

Specifications & Features

  • Ultra slim design with die cast Aluminum frame and and highly efficient PMMA / Opal Diffuser.
  • High energy saving Vis a Vis conventional fluorescent-60% compared to CFL/PLC luminaires.
  • External constant current driver
  • More than 85% driver efficiency
  • Wide operating voltage 100 - 277Vac
  • Color Rendering Index (CRI) > 80
  • Working ambient temperature -20°C to + 45°C
  • Rated Life 50,000Hrs (Ta= 30°C @ L70)
  • High intensity of illumination with 120°beam angle
  • Uniform diffuse & excellent glare control
  • Instant start without flash & humming
  • Electric wave & radio interference free
  • Without mercury,UV & IR radiation
  • IP 20 Ingress Protection

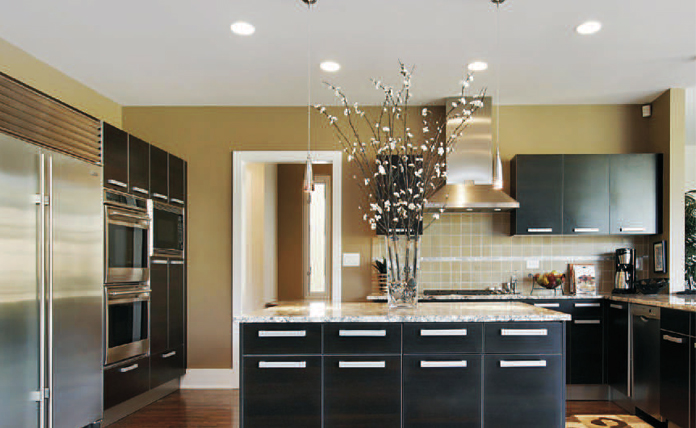

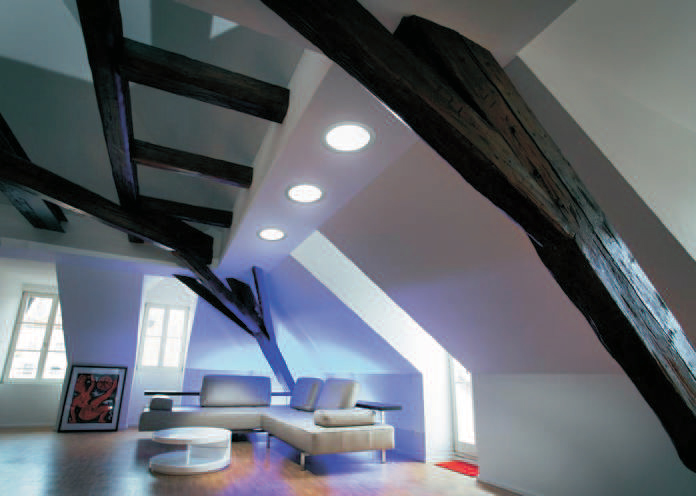

    • Applications

  • Retail Stores
  • Hotels
  • Offices Space
  • Residential Building
  • Institutional Buildings
  • Educational Institute
  • Hospitals

    • Installation & Maintenance

  • Feasible for Recess mounting
  • Suitable for POP & Gypsum False Ceiling
  • Power supply should be disconnected before service

    • Technical & Ordering Information

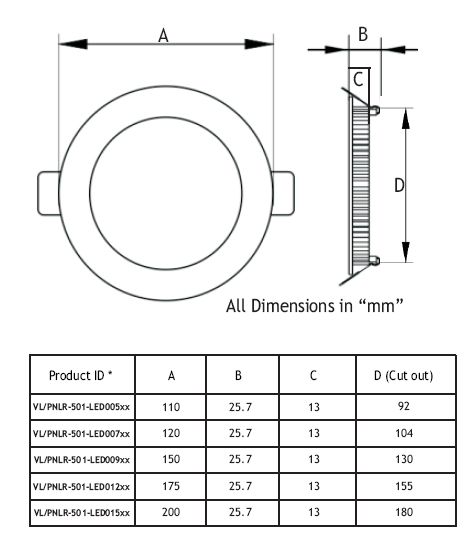

    Product ID / Ordering Code Product Description Wattage(W) Nominal Voltage(V) Mains Current(A) CCT (K) Lumen (lm)
    VL/PNLR-501-LED00557 Slim Rnd LED Panel 5/ CW L110 5 230 0.04 6500 400
    VL/PNLR-501-LED00757 Slim Rnd LED Panel 7/ CW L120 7 230 0.06 6500 560
    VL/PNLR-501-LED00957 Slim Rnd LED Panel 9/ CW L150 9 230 0.07 6500 720
    VL/PNLR-501-LED01257 Slim Rnd LED Panel 12/ CW L175 12 230 0.10 6500 960
    VL/PNLR-501-LED01557 Slim Rnd LED Panel 15/ CW L200 15 230 0.12 6500 1200
    Lamp Enclosed Rated

    * xx Also available in 3000K & 4000K CCTs

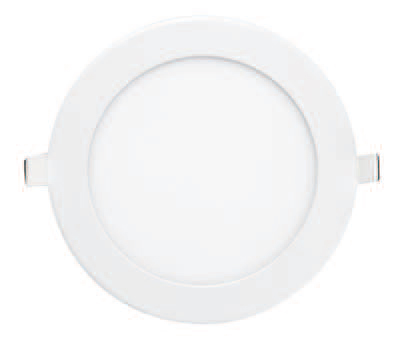

    LED Panel Light

    PDF Version

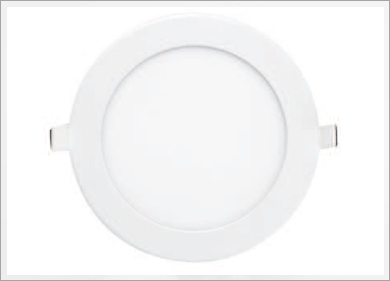

    Slim Round

    Slim Round
    Slim Round
    Slim Round

    Specifications & Features

  • Ultra slim design with die cast Aluminum housing and highly efficient PMMA / Opal Diffuser.
  • High energy saving Vis a Vis conventional fluorescent-60% compared to CFL / PLC Luminaires.
  • External constant current driver with > 95% power factor
  • More than 85% driver efficiency with <15% current THD
  • Wide operating voltage 100 - 285Vac
  • Color Rendering Index (CRI) > 80
  • Working ambient temperature -20°C to +45°C
  • Rated Life 50,000Hrs (Ta= 30°C @ L70)
  • High intensity of illumination with 120°beam angle
  • Uniform diffuse & excellent glare control
  • Instant start without flash & humming
  • Electric wave & radio interference free
  • Without mercury,UV & IR radiation
  • IP 20 Ingress Protection

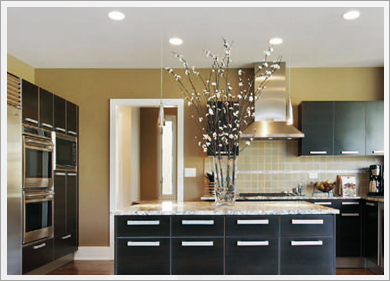

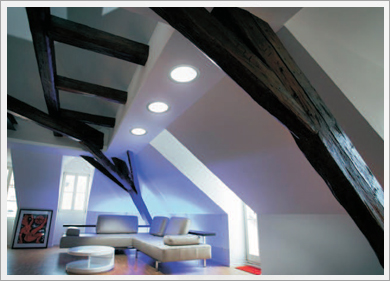

    • Applications

  • Offices Space
  • Residential Building
  • Institutional Buildings
  • Educational Institute
  • Hospitals
  • Retail Stores
  • Hotels

    • Installation & Maintenance

  • Feasible for Recess mounting
  • Suitable for POP & Gypsum False Ceiling
  • Power Supply should be disconnected before service.

    • Technical & Ordering Information

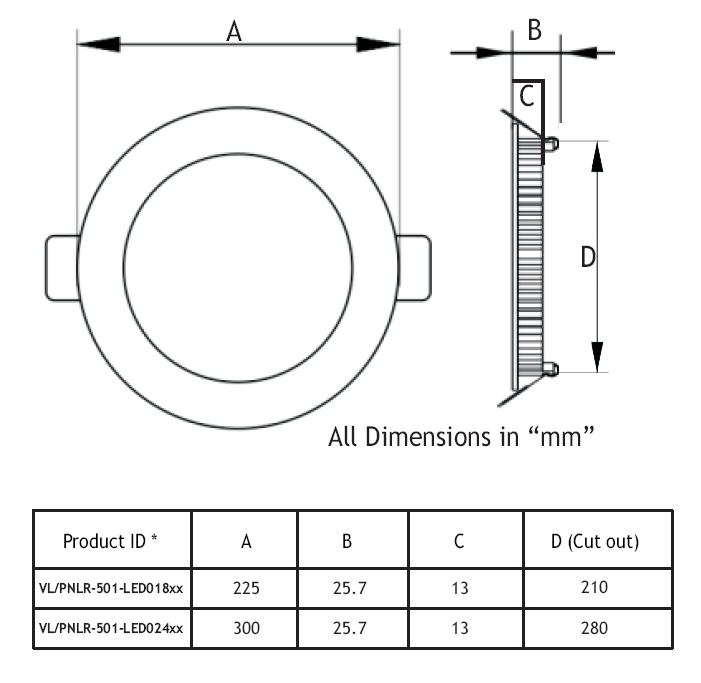

    Product ID / Ordering Code Product Description Wattage(W) Nominal Voltage(V) Mains Current(A) CCT (K) Lumen (lm)
    VL/PNLR-501-LED01830 Slim Rnd LED Panel 18/ WW L225

    18

    230

    0.085    		 3000 1450
    VL/PNLR-501-LED01840 Slim Rnd LED Panel 18/ NW L225 4000 1550
    VL/PNLR-501-LED01857 Slim Rnd LED Panel 18/ CW L225 6500 1550
    VL/PNLR-501-LED02430 Slim Rnd LED Panel 24/ WW L300

    24

    230

    0.115    		 3000 1800
    VL/PNLR-501-LED02440 Slim Rnd LED Panel 24/ NW L300 4000 1920
    VL/PNLR-501-LED02457 Slim Rnd LED Panel 24/ CW L300 6500 1920
    Lamp Enclosed Rated
