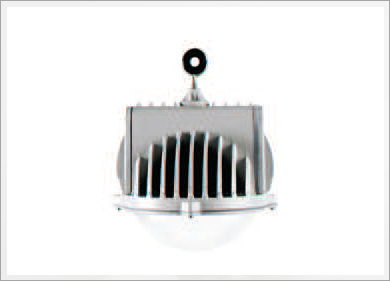

LED Well Glass

Elite

 Elite
 Elite
 Elite

Specifications & Features

  • Die cast Aluminum housing polyester powder coated with highly efficient optical grade PC cover
  • > 40% energy saving Vis a Vis Conventional HID Well glass
  • Over load, over voltage & short circuit protection
  • Integral constant current driver with PF > 95%
  • More than 85% driver efficiency with THDi < 10%
  • Equipped with 10KV Surge suppression Protection
  • Wide operating voltage 120 - 285V
  • Color Rendering Index (CRI) > 80
  • Working ambient temperature -10°C to + 50°C
  • Rated Life 50,000Hrs (Ta= 30°C @ L70)
  • High intensity of illumination with 120°view angle
  • Flicker free instant start electronic operation
  • Electric wave & radio interference free
  • Without mercury, UV & IR radiation
  • IP 65 / IP 66 Ingress Protection

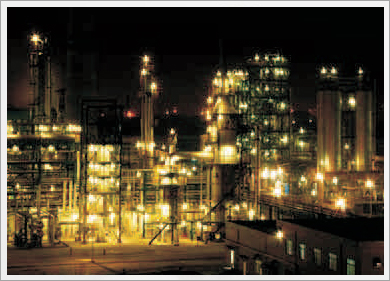

  • Applications

  • Power Plant
  • Cement Plant
  • Steel Plant
  • Fertilizer Industries
  • Security Lighting
  • Conveyor
  • Installation & Maintenance

  • Mounting with hook, chain or Cable
  • Option for loop in loop out can be provided
  • Power Supply should be disconnected before service

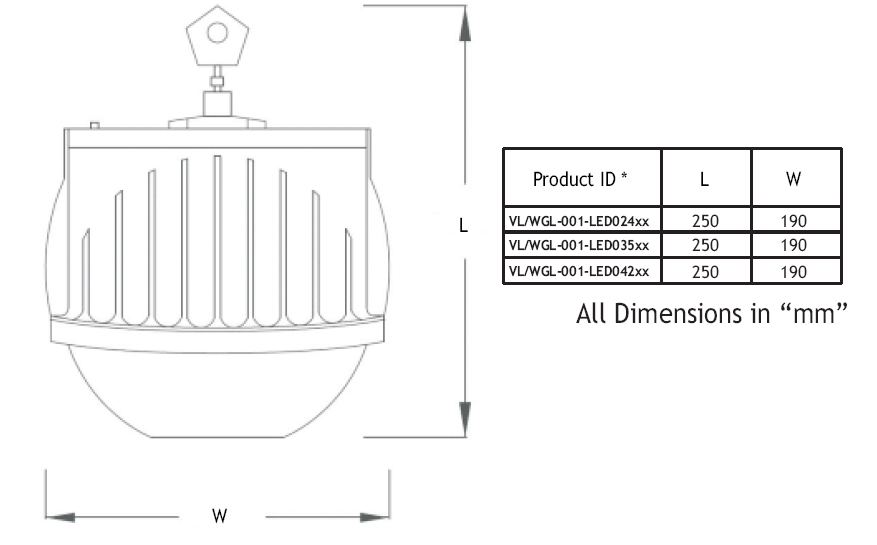

  • Technical & Ordering Information

    Product ID / Ordering Code Product Description Wattage(W) Nominal Voltage(V) Mains Current(A) CCT (K) Lumen (lm)
    VL/WGL-001-LED04265 Elite LED Well glass 42/CW 42 230 0.19 6500 3350
    Lamp Enclosed Rated

    *xx also available in 3000K, 4000K, 5000K CCTs on request
