MELINIS PRO 1x4 RECESSED

LED Panel Edgelit

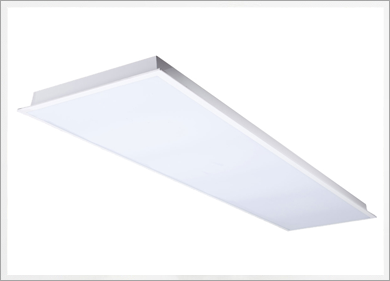

Melinis Pro 1x4 Recessed
LED Panel Edgelit

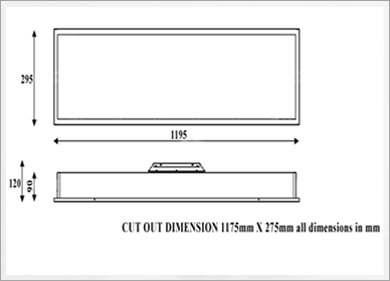

Dimension Details
LED Panel Edgelit
Application

Description

MELINIS is 1x4 Full Lit Office lighting LED solution, for recessed commercial application. Offered in 24W, 30W, 34W, and 42W .With its unique minimalistic design made of high grade CRCA material creates inviting atmosphere. Luminaire provides a high level of architectural flexibility through its color variants. Carefully selected diffuser made of special grade lighting material helps provide maximum light output with ultimate uniformity. Thanks to its lighting effects and its appearance in enhancing workspaces ambience.

Specifications & Features

  • Minimalistic designed CRCA housing body for excellent mechanical stability.
  • Diffuser is made of special diffusion material with high transmission, delivering effective light output without any dark or bright patch.
  • Rated life of L70 @ 50000 hours ensures uninterrupted long service life.
  • Excellent color rendering capabilities reveals true color of your surrounding space.
  • Superior lumen and color maintenance.
  • Best in class lumen per watt - more light for less cost.
  • In built electrical protections like over voltage, short circuit, over load, miswiring for additional safety precautions.
  • The luminaire is rated for Efficacy >100 LPW& 110 LPW, Pf >0.95 , THD <10%.
  • With high efficiency low power loss driver, system is maintained at cooler temperatures and leads to longer driver life.

    • Installation & Maintenance

  • Compatible with standard Armstrong ceiling with cut out dimension of 1175 mm x 275 mm.
  • Chain mounting through two mounting bracket.

    • Applications

  • Office Interior & Hotels
  • Airport terminal & Restaurants
  • Healthcare & Schools
  • Departmental store & Shopping malls

    • Compliance

  • IP 20.
  • Class I

    • ELECTRICAL & ORDERING INFORMATION

    Model / Ordering code Description System Wattage Color Temp THD Power Factor Mains Current Weight (Kg)
    VLC1015 VLCR/102/24/57/00/NWH/V0 24W 5700K < 10% >0.95 0.107 Amps 5kg
    VLC1017 VLCR/102/30/57/00/NWH/V0 30W 5700K < 10% >0.95 0.130 Amps 5kg
    VLC1018 VLCR/102/34/57/00/NWH/V0 34W 5700K < 10% >0.95 0.146 Amps 5kg
    VLC1019 VLCR/102/42/57/00/NWH/V0 42W 5700K < 10% >0.95 0.178 Amps 5kg
    Lamp Enclosed Rated
