MELINIS PRO 1x4 Surface

LED Panel Edgelit

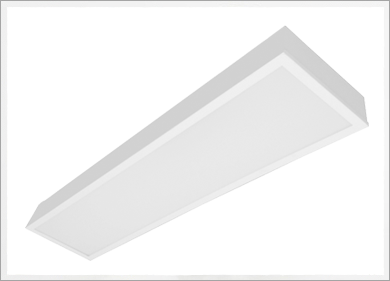

Melinis Pro 1x4 Surface
 LED Panel Edgelit

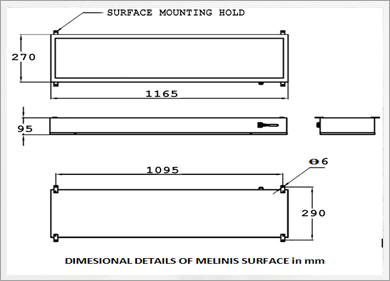

Dimension Details
 LED Panel Edgelit

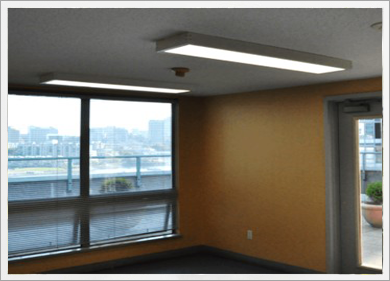

Application

Description

Melinis Pro Surface is 1x4 Full Lit Office lighting LED solution, for Surface mount commercial application. Offered in 25W, 28W, 32W and 35W in standard lumen version. With its unique minimalistic design made of high grade CRCA material creates inviting atmosphere. Luminaire provides a high level of architectural flexibility through its color variants. Carefully selected diffuser made of special grade lighting material helps provide maximum light output with ultimate uniformity.

Specifications & Features

  • Options available from 25w to 35W LED Office Lighting .
  • Minimalistic designed CRCA housing body for excellent mechanical stability.
  • Diffuser is made of special diffusion material with high transmission, delivering effective light output without any dark or bright patch.
  • Rated life of L70 @ 50000 hours ensures uninterrupted long service life.
  • Excellent color rendering capabilities reveals true color of your surrounding space.
  • Superior lumen and color maintenance.
  • Best in class lumen per watt - more light for less cost.
  • In built electrical protections like over voltage, short circuit, over load, miswiring for additional safety precautions.
  • The luminaire is rated for Efficacy >100 LPW, Pf >0.95 , THD <10%.
  • With high efficiency low power loss driver, system is maintained at cooler temperatures an
  • Options available from 25w to 35W LED Office Lighting (OL).
  • Installation & Maintenance

  • Surface/ceiling mounting with fixing pitch dimension of 1090 mm x 290 mm.
  • Chain mounting through two mounting bracket.
  • Applications

  • Office Interior
  • Hotels
  • Airport terminal
  • Restaurants
  • Healthcare
  • Schools
  • Departmental store & Shopping malls
  • Compliance

  • IP 20.
  • Class I.
  • ELECTRICAL & ORDERING INFORMATION

    Model / Ordering code Description System Wattage Color Temp THD Power Factor Mains Current Weight (Kg)
    VLC1032 VLCS/105/25/57/00/NWH/V0 25W 5700K < 10% >0.95 0.109 Amps 4.5kg
    VLC1033 VLCS/105/28/57/00/NWH/V0 28W 5700K < 10% >0.95 0.122 Amps 4.5kg
    VLC1034 VLCS/105/32/57/00/NWH/V0 32W 5700K < 10% >0.95 0.140 Amps 4.5kg
    VLC1035 VLCS/105/35/57/00/NWH/V0 35W 5700K < 10% >0.95 0.154 Amps 4.5kg
    Lamp Enclosed Rated
