RUBUS ROUND DOWNLIGHTER

LED Panel Edgelit

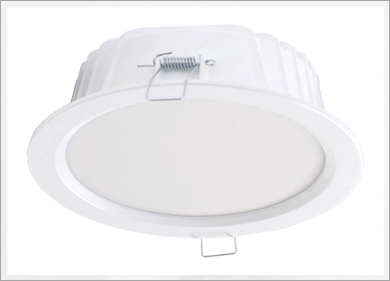

Rubus Round Down lighter
 LED Panel Edgelit

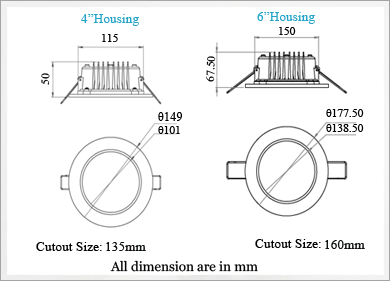

Dimension Details
 LED Panel Edgelit

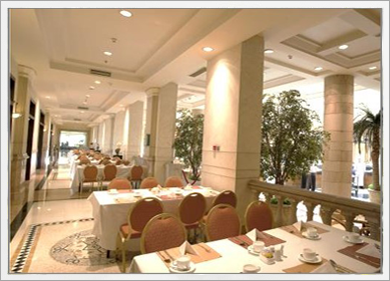

Application

Description

RUBUS new range of professional LED recessed down-lighter designed with high quality LED technology, which encompasses both functional and decorative values. RUBUS Round DL is offered in variants of 12W, 15W, 17W, 19W, 20W, 22W and 24 W in 6 Inch housing, and 6W, 10W, 12W and 15W in 4 Inch housing. Made in pressure die cast Aluminum housing along with pressure die cast frame intended to provide better thermal management and also create a welcoming ambience in modern indoor space. Its design attributes makes it futuristic yet an elegant green product bought from Venture Lighting Family.

Specifications & Features

  • Options available in 6W, 10W 12W, 14W, 15W,17W, 19W,20W,22W &24W can directly replace existing conventional DL.
  • Rubus Recess downlighter is offered in 12W,15W,17W,20W &24W in std version in 6 inch housing >100LPW.
  • Rubus Recess downlighter is offered in 6W, 10W,12W,15W in 4 inch housing and 17W,19W,22W &24W in 6inch housing in high lumen version>110 LPW .
  • Elegantly designed Pressure Die Cast Aluminum housing body for better thermal dissipation.
  • Sturdy Pressure Die Cast Aluminum frame for better fit and finish.
  • Use of high grade reflective sheet to enhance light output.
  • Flat diffuser is made of special light grade plastic material with excellent diffusion properties, delivering superior light output with maximum uniformity.
  • Rated life of L70 @ 60000 hours ensures uninterrupted long service life.
  • Excellent color rendering capabilities reveals true color of your surrounding space.
  • Superior lumen and color maintenance.
  • Best in class lumen per watt - more light for less cost.
  • In built electrical protections like over voltage, short circuit, over load, miswiring for additional safety precautions.
  • With high efficiency low power loss driver, system is maintained at cooler temperature and leads to longer driver life.
  • The luminaire is rated for Efficacy >100 LPW, Pf >0.95 , THD <10%
  • Installation & Maintenance

  • For 6 inch housing 12, 15, 17, 19 & 22W system cut Ø 160mm mounting hole, make sure that the ceiling thickness is 10-15mm.
  • For 4 inch housing 6, 10, 12 & 15 system cut Ø 135mm mounting hole, make sure that the ceiling thickness is 10-15mm
  • Applications

  • Office Interior
  • Hotels
  • Departmental store & Shopping malls
  • Airport terminal
  • Restaurants
  • Healthcare
  • Schools
  • Compliance

  • IP 20
  • Class I
  • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLD2004 VLDR/201/12/57/6R/10/NWH/V0 12W in 6"_HL 5700K 0.0575 < 10% >0.95 0.6kg
    VLD2005 VLDR/201/15/57/6R/10/NWH/V0 15W in 6"_HL 5700K 0.0648 < 10% >0.95 0.6kg
    VLD2006 VLDR/201/17/57/6R/15/NWH/V0 17W in 6"_HL 5700K 0.0728 < 10% >0.95 0.6kg
    VLD2008 VLDR/201/22/57/6R/15/NWH/V0 22W in 6"_HL 5700K 0.0978 < 10% >0.95 0.6kg
    VLD2014 VLDR/201/12/57/6R/00/NWH/V0 12W in 6" 5700K 0.058 < 10% >0.95 0.6kg
    VLD2015 VLDR/201/15/57/6R/00/NWH/V0 15W in 6" 5700K 0.067 < 10% >0.95 0.6kg
    VLD2016 VLDR/201/17/57/6R/00/NWH/V0 17W in 6" 5700K 0.075 < 10% >0.95 0.6kg
    VLD2017 VLDR/201/20/57/6R/00/NWH/V0 20W in 6" 5700K 0.083 < 10% >0.95 0.6kg
    VLD2018 VLDR/201/24/57/6R/00/NWH/V0 24W in 6" 5700K 0.101 < 10% >0.95 0.6kg
    VLD2019 VLDR/201/19/57/6R/10/NWH/V0 19W in 6"_HL 5700K 0.084 < 10% >0.95 0.6kg
    VLD2020 VLDR/201/24/57/6R/10/NWH/V0 24W in 6"_HL 5700K 0.103 < 10% >0.95 0.6kg
    VLD2010 VLDR/203/06/57/4R/10/NWH/V0 6W in 4"_HL 5700K 0.025 < 10% >0.95 0.45kg
    VLD2011 VLDR/203/10/57/4R/10/NWH/V0 10W in 4"_HL 5700K 0.0439 < 10% >0.95 0.45kg
    VLD2012 VLDR/203/12/57/4R/10/NWH/V0 12W in 4"_HL 5700K 0.0526 < 10% >0.95 0.45kg
    VLD2013 VLDR/203/15/57/4R/10/NWH/V0 15W in 4"_HL 5700K 0.0658 < 10% >0.95 0.45kg
    Lamp Enclosed Rated
