CARIS NEO

LED Panel Edgelit
Caris Neo
LED Panel Edgelit

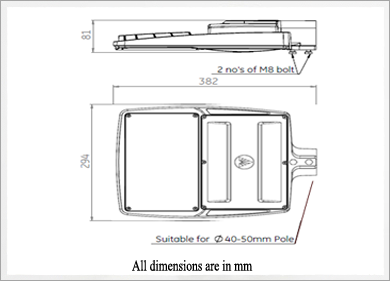

Dimension Details
LED Panel Edgelit
Application

Description

VLI Street Light Series continues to impress and raise the bar on performance and reliability through its new addition, the VLI CARIS Neo. And now, it outperforms its competitors by far through delivery of best in class specifications and durability. With its unrivalled lumen output and affordance in tandem with specialized optical distribution technology, CARIS Neo provides superior illumination, perfect for a wide variety of roadway and area lighting applications.

Specifications & Features

  • Options are available in 50W, 60W, 70W, 80W and 90W LED Street Lighting (SL).
  • Elegantly designed pressure die cast aluminum housing body with optimal heat sink for better thermal dissipation.
  • Injection molded diffuser is made of special Polycarbonate material with high transmission index, delivering superior light output.
  • Rated life of L70 @ >50000 hours ensures uninterrupted long service life.
  • Color temperature of 5600K for brighter outdoor application.
  • Secondary lens used for asymmetric wide distribution, ideal for street light application.
  • With the use of special type of Micro Vent (rated at IP69), enclosure is allowed to breath to avoid entry of moisture and industrial micro-particles inside housing
  • Best in class lumen per watt - more light for less cost.
  • Use of PG11 cable gland allows air tight wire entry to housing.
  • In-built electrical protections like over voltage, short circuit, over load, miswiring for additional safety precautions.
  • With high efficiency low power loss driver, system is maintained at cooler temperature and leads to longer driver life.
  • Silicone gasket ensures both optical and electrical compartments are IP 66 protected.

    • Installation & Maintenance

  • Compatible for pole mounting with pole outer diameter 40mm to 50mm.
  • Fixture can be mounted with help of M8 bolts (2 no's) made of Stainless Steel.
  • Wiring through open 3 poles wires.

    • Applications

  • Street and Roadways
  • Highways and Overhead roads
  • Industrial parks
  • Commercial plaza
  • Parking lots

    • Compliance

  • IP 66
  • Class I

    • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLR4008 VLPRO/403/50/56/100/NGR/V0P 50W 5700K 0.209 Amps < 10% >0.95 3.3kg
    VLR4007 VLPRO/403/60/56/100/NGR/V0P 60W 5700K 0.248 Amps < 10% >0.95 3.3kg
    VLR4006 VLPRO/403/70/56/100/NGR/V0P 70W 5700K 0.279 Amps < 10% >0.95 3.3kg
    VLR4005 VLPRO/403/80/56/100/NGR/V0P 80W 5700K 0.334 Amps < 10% >0.95 3.3kg
    VLR4004 VLPRO/403/90/56/100/NGR/V0P 90 W 5700K 0.334 Amps < 10% >0.95 3.3kg
    Lamp Enclosed Rated
