CEDAR LINEAR INTERCONNECT SUSPENDED DOWN

LED Panel Edgelit
Cedar Interconnect Linear
LED Panel Edgelit
Cedar Interconnect Linear
LED Panel Edgelit
Cedar Interconnect Linear
LED Panel Edgelit
Cedar Interconnect Linear
LED Panel Edgelit
Dimension Details
LED Panel Edgelit
Application

Description

Cedar Linear Series is highly innovative product suitable for various indoor applications. Cedar Linear Interconnect sets a clean visual architectural environment in the indoor space. The extruded aluminum profile counters a precise in line appearance that complements open space design plans and complex indoor architectures. With simple elegance and adaptability, it suits to most interior design applications.

Specifications & Features

  • Cedar Linear Innterconnect is availaible in 4ft &8ft length as standard range and can also be provided in 2ft &3ft versions.
  • Availaible in wattages of 18W, 24W ,38W in 4ft & 36W, 48W &56W in 8ft length with efficacy > 100 LPW .
  • Anodized aluminum extrusion body with excellent mechanical strength & durability.
  • Extruded profile diffuser is made of special Polycarbonate material with high transmission index, delivering superior light output.
  • Luminaire provides a high level of architectural flexibility with interconnection the luminaires, to meet architectural needs & project requirements .
  • Uniform, high quality light, with good color rendering capabilities reveals true color of your surrounding space.
  • CRI >80 & THD <10 % and pf > 0.95 & CCT options of 5700K & 4000K
  • Rated life of L70 @ >50000 hours ensures uninterrupted long service life.
  • In-built electrical protections like over voltage, short circuit, over load, mis wiring , surge protection of min 2kV internal with electrical class I rating for additional safety precautions.
  • Can be provided with DALI Ballast.
  • In built constant current driver is provided in the luminaire housing or driver can be provided externally .
  • The average weight of Cedar Inter connect Suspended down 4ft is 2.05Kg & 8ft is 4.11Kg.

    • Installation & Maintenance

  • Suitable for Surface mounting on direct RCC ceiling.
  • Universal suspension system with quick on site adjustment up to 2000 MM.

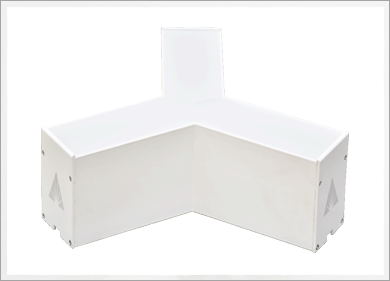

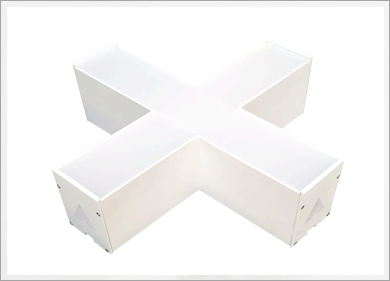

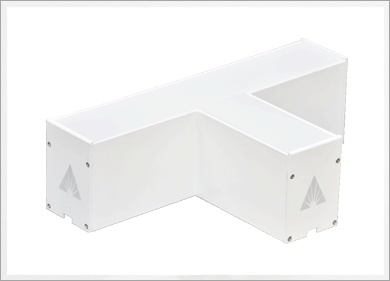

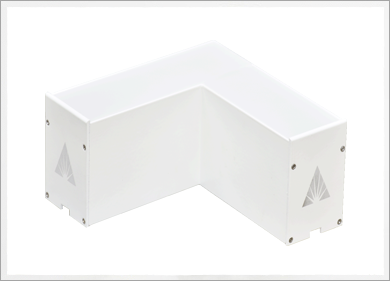

  • Easy interconnect with 3-directional fixing with Align Screws and gives more rigidity.
  • Easy driver replacement with side End cap opening.

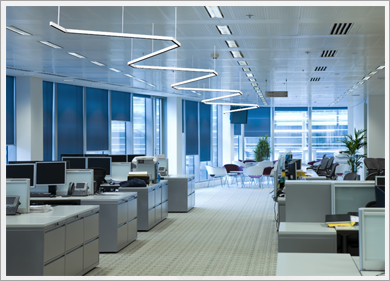

    • Applications

  • Office Lighting
  • Retail Stores
  • Commercial Buildings
  • Airport Terminals
  • Museums

    • Compliance

  • IP 20
  • Class I

    • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp THD Power Factor Mains Current Weight (Kg)
    VLC1190 VLCP/111/18/57/00/1.2M/IC-DN/NWH/V0 18W 5700K < 10% >0.95 0.0789 Amps 2.05kg
    VLC1191 VLCP/111/24/57/00/1.2M/IC-DN/NWH/V0 24W 5700K < 10% >0.95 0.1053 Amps 2.05kg
    VLC1192 VLCP/111/28/57/00/1.2M/IC-DN/NWH/V0 28W 5700K < 10% >0.95 0.1228 A 2.05kg
    VLC1193 VLCP/111/36/57/00/2.4M/IC-DN/NWH/V0 36W 5700K < 10% >0.95 0.1579 Amps 4.11kg
    VLC1194 VLCP/111/48/57/00/2.4M/IC-DN/NWH/V0 48W 5700K < 10% >0.95 0.2105 Amps 4.11kg
    VLC1195 VLCP/111/56/57/00/2.4M/IC-DN/NWH/V0 56W 5700K < 10% >0.95 0.2456 Amps 4.11kg
    VLC1196 VLCP/111/18/40/00/1.2M/IC-DN/NWH/V0 18W 4000K < 10% >0.95 0.0789 Amps 2.05kg
    VLC1197 VLCP/111/24/40/00/1.2M/IC-DN/NWH/V0 24W 4000K < 10% >0.95 0.1053 Amps 2.05kg
    VLC1198 VLCP/111/28/40/00/1.2M/IC-DN/NWH/V0 28W 4000K < 10% >0.95 0.1228 Amps 2.05kg
    VLC1199 VLCP/111/36/40/00/2.4M/IC-DN/NWH/V0 36W 4000K < 10% >0.95 0.1579 Amps 4.11kg
    VLC1200 VLCP/111/48/40/00/2.4M/IC-DN/NWH/V0 48W 4000K < 10% >0.95 0.2105 Amps 4.11kg
    VLC1201 VLCP/111/56/40/00/2.4M/IC-DN/NWH/V0 56W 4000K < 10% >0.95 0.2456 Amps 4.11kg
    Lamp Enclosed Rated
