Indoor Commercial Lighting
CEDAR RECESS

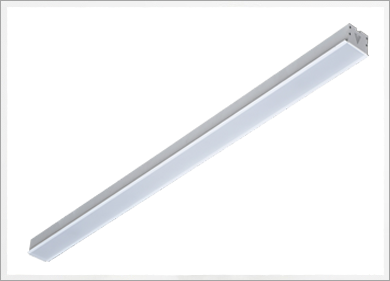

Cedar Recess

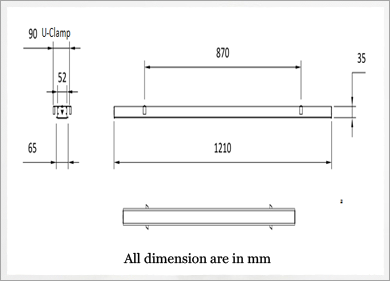

Dimension Details

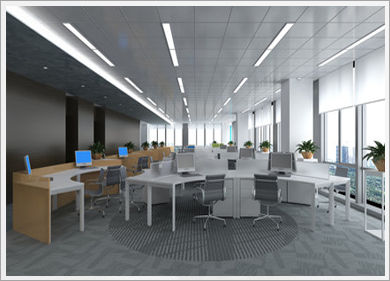

Application
Description
Cedar Recess is highly innovative product suitable for various indoor applications. Cedar linear is elegant, energy efficient and compliant with indoor & office lighting requirements.Cedar Recess is best in class product for high light output and best suited design. Luminaire provides superior aesthetics with excellent finish with easy maintenance and high savings. It finds very suitable application for mid and high end office buildings & interiors.
Specifications & Features
Cedar Recess is available in stand-alone in 4ft length in standard wattages 18W ,24W,28W in profile width of 65mm width.
Luminaire are suitable for stand-alone in 18W, 24W, & 28W in 4ft length & customised length available on request.
Anodised aluminium body with excellent mechanical strength and durability.
High quality anti pc leakage profile design diffuser for high quality illumination across horizontal and vertical surface.
Excellent heat dissipation system through luminaire design.
Rated life of L70 @ 50000 hours ensures uninterrupted long service life.
CRI >80 & THD <10 % and pf > 0.95 & CCT options of 5700K & 4000K
Best in class lumen per watt - more light for less cost.
In-built electrical protections like over voltage, short circuit, over load, miswiring for additional safety precautions
With high efficiency low power loss driver, system is maintained at cooler temperature and leads to longer driver life.
Driver duly wired up to the terminal block .
Available with option of multi-watt/analog and DALI drivers.
Product is design for easy servicing.
Standard available colour of luminaire will be white, black or grey can also be offered.
Installation & Maintenance
Suitable for POP /Recessed ceiling, Cutout size : 1210 x 55 mm is required.
Suitable for Techzone ceilings for seamless Lighting.
Easy to replacement of driver “ external remotely placed driver”.
Applications
Open Modern Offices
Retail Stores
Green Buildings
Airport Terminals
Shopping Malls
Retail Shops
Electrical & Ordering Information
| Model / Ordering code |
Description |
System Wattage |
Color Temp |
THD |
Power Factor |
Mains Current |
Weight (Kg) |
| VLC1214 |
VLCR/125/18/57/00/1.2M/SA-DN/NWH/V0 |
18W |
5700K |
< 10% |
>0.95 |
0.0789 Amps |
1.305kg |
| VLC1215 |
VLCR/125/24/57/00/1.2M/SA-DN/NWH/V0 |
24W |
5700K |
< 10% |
>0.95 |
1.305 Amps |
2kg |
| VLC1216 |
VLCR/125/28/57/00/1.2M/IC-DN/NWH/V0 |
28W |
5700K |
< 10% |
>0.95 |
0.1228 Amps |
1.305kg |
| VLC1217 |
VLCR/125/18/40/00/1.2M/SA-DN/NWH/V0 |
18W |
4000K |
< 10% |
>0.95 |
0.0789 Amps |
1.305kg |
| VLC1218 |
VLCR/125/24/40/00/1.2M/SA-DN/NWH/V0 |
24W |
4000K |
< 10% |
>0.95 |
0.1053 Amps |
1.305kg |
| VLC1219 |
VLCR/125/28/40/00/1.2M/IC-DN/NWH/V0 |
28W |
4000K |
< 10% |
>0.95 |
0.1228 Amps |
1.305kg |
