VENTURE LED LIGHTING

Indoor Commercial Lighting

PDF Version

HOSTA SUSPENDED

LED Panel Edgelit

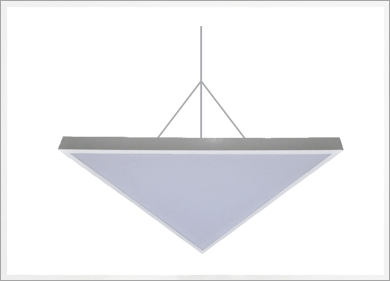

Hosta Suspended
LED Panel Edgelit

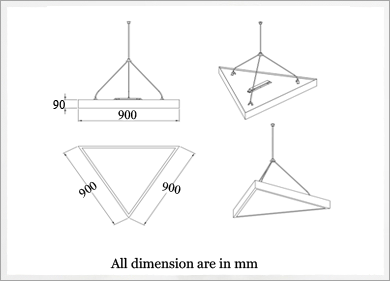

Dimension Details
LED Panel Edgelit

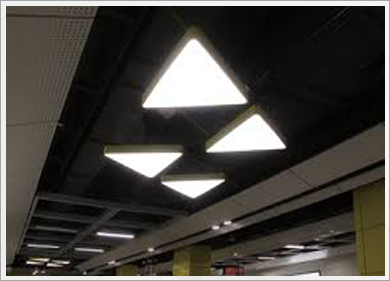

Application

Description

Hosta Suspended is a triangular geometric design luminaire for public areas, representative rooms, communicative meeting areas and its application can be found in numerous surroundings. The luminaire provides hospitality environment to the interiors with a distinct appearance designed to provide to provide clean, clear & glare free impactful lighting.

Specifications & Features

  • Options are available with wattages 32W in 900mm Length, with best in class Lumen per watt- more light for less cost.
  • Triangle shape CRCA housing body for excellent mechanical stability.
  • Diffuser is made of special diffusion material with high transmission, delivering effective light output without any dark or bright patch.
  • Available with CCT 5700K & 4000K with CRI>80.
  • Uniform, high quality light, with good color rendering capabilities reveals true color of your surrounding space.
  • Rated life of L70 @ >50000 hours ensures uninterrupted long service life.
  • In-built electrical protections like over voltage, short circuit, over load, mis wiring , surge protection of min 2kV internal with electrical class I rating for additional safety precautions.
  • In built constant current driver is provided in the luminaire housing.
  • The luminaire is rated for Efficacy 100 LPW, Pf >0.95 , THD <10%.
  • The average weight of Hosta Suspended is 8.2 kgs.

    • Installation & Maintenance

  • Easy installation of Three point to Single point suspension system.
  • Easy height adjustable Universal Suspended system upto 1500 mm.
  • Easy LED driver replacement on top of the Fixture.

    • Applications

  • Office Lighting
  • Retail Stores
  • Airport Terminals
  • Museums

    • Compliance

  • IP 20
  • Class I

    • Electrical & Ordering Information

    Model / Ordering code Description System Wattage Color Temp Mains Current THD PF Weight (Kg)
    VLC1235 VLCP/129/32/57/00/0.9M/NWH/V0 32W 5700K 0.140 Amps < 10% >0.95 8.215kg
    VLC1236 VLCP/129/32/40/00/0.9M/NWH/V0 32W 4000K 0.140 Amps < 10% >0.95 8.215kg
    Lamp Enclosed Rated
