Indoor Commercial Lighting
MALUS
Malus

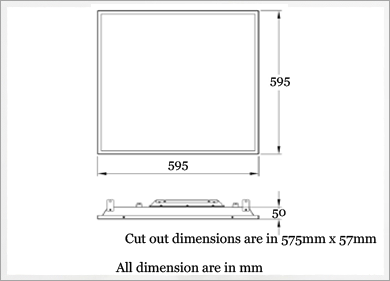

Dimension Details
Application
Description

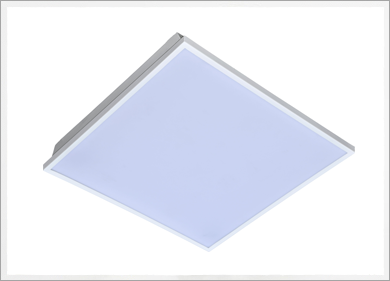

MALUS is high efficiency 2x2 ft low depth slim LED Luminaire for recess mounting suitable for 2x2 grid ceiling. This luminaires transforms ambient lighting into an exquisite balance of refined appearance and excellent efficiency. It is a pleasing design aesthetic offering a crisp clean look and adding beautiful ambient light to any space.
Specifications & Features
Options available from 20W to 28W, with efficacy > 130LPW.
Minimalistic designed CRCA housing body for excellent mechanical stability.
Diffuser is made of special diffusion material with high transmission, delivering effective light output without any dark or bright patch.
Glare free with low ripple driver.
Rated life of L70 @ 50000 hours ensures uninterrupted long service life.
Excellent color rendering capabilities reveals true color of your surrounding space.
Superior lumen and color maintenance.
Best in class lumen per watt - more light for less cost.
In built electrical protections like over voltage, short circuit, over load, miswiring for additional safety precautions.
With high efficiency low power loss driver, system is maintained at cooler temperatures and leads to longer driver life.
The luminaire is rated for Efficacy >120 LPW&> 130LPW, Pf >0.95 , THD <10
*MALUS HCL Version with RF Sensor& Standalone
Malus can be provided with Human Centric Lighting (HCL) on standalone basis or suitable for Venture IoT lighting management system.
The system consists of LED Lighting fixtures with in-built occupancy sensors and wireless communication capability.
The deployed, “intelligent lighting fixture” forms a smart wireless network grid across the building, constantly collecting data to further enable automation, analysis, control and reporting.
One gateway is installed for upto to a maximum of 100 sensors. This number is subject to installation of luminaries within the coverage area of gateway. The gateway device acts as the bridge between sensors and the software server.
Installation & Maintenance
Compatible with standard Armstrong ceiling with cut out dimension of 575 mm x 575 mm.
Chain mounting through two mounting bracke

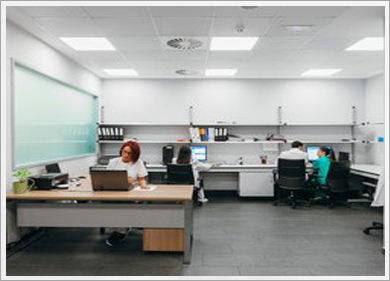

Applications
Departmental Stores & Hotels
Healthcare & Schools
Office Interior & Airport terminal
Hotels & Restaurants
Electrical & Ordering Information
| Model / Ordering code |
Description |
System Wattage |
Color Temp |
THD |
Power Factor |
Mains Current |
Weight (Kg) |
| VLC1152 |
VLCR/119/20/57/30/N/NWH/V0 |
20W |
5700K |
< 10% |
>0.95 |
0.087 Amps |
4.5kg |
| VLC1153 |
VLCR/119/23/57/30/N/NWH/V0 |
23W |
5700K |
< 10% |
>0.95 |
0.100 Amps |
4.5kg |
| VLC1154 |
VLCR/119/28/57/30/N/NWH/V0 |
28W |
5700K |
< 10% |
>0.95 |
0.120 Amps |
4.5kg |
Note -*Also availaible in Human Centric Lighting Version & standalone CCT version on request.
