Indoor Commercial Lighting
BALETE
Balete
Dimension Details
Application
Description

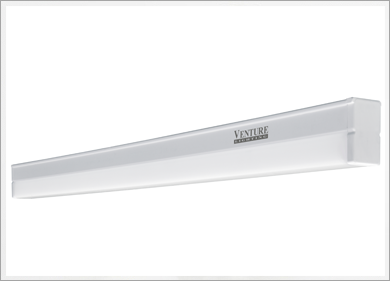

BALETE an Indo Commercial Batten is a LED lighting solution for surface mount commercial application offered in 2 feet (10W) and 4 feet (20W) variants. A minimalistic design provides welcoming environment suitable for indoor commercial use. Luminaire provides a high level of light output along with great visual appeal. Offered in standard surface mounting option with all the required accessories. Pre-wired luminaire provides ease of installation during commissioning. Carefully elected diffuser made of special grade lighting material helps provide maximum light output with ultimate uniformity. It qualifies as perfect green product from the Venture Lighting family.
Specifications & Features
Options available in 10W and 20W LED Office Lighting (OL).
Minimalistic designed Co-extrusion polymer housing body for excellent mechanical stability.
Diffuser is made of special diffusion material with high transmission, delivering effective light output without any dark or bright patch.
Injection molded end caps for excellent fit and finish.
Rated life of L70 @ 36000 hours ensures uninterrupted long service life.
Excellent color rendering capabilities reveals true color of your surrounding space.
Superior lumen and color maintenance.
Best in class lumen per watt - more light for less cost.
In built electrical protections like over voltage, short circuit, over load, miswiring for additional safety precautions. .
With high efficiency low power loss driver, system is maintained at cooler temperatures and leads to longer driver life. .
The luminaire is rated for Efficacy 100 LPW, Pf >0.95 , THD <10% .
Installation & Maintenance
Surface Mounting through 2 No of screw and snap clip.All the accessories are part of standard packing.
Applications
Household Application
Retail stores
Office Space
Hotels, Restaurants
Healthcare
Schools
Airport Terminals & Shopping malls
Electrical & Ordering Information
| Model / Ordering code |
Description |
System Wattage |
Color Temp |
Mains Current |
THD |
PF |
Weight (Kg) |
| VLC1010 |
VLCS/101/10/57/00/NWH/V0 |
10W |
5700K |
0.05 Amps |
< 10% |
>0.9 |
0.1kg |
| VLC1011 |
VLCS/101/20/57/00/NWH/V0 |
20W |
5700K |
0.1 Amps |
< 10% |
>0.95 |
0.2g |
