Indoor Commercial Lighting
DALE SURFACE
Dale Surface

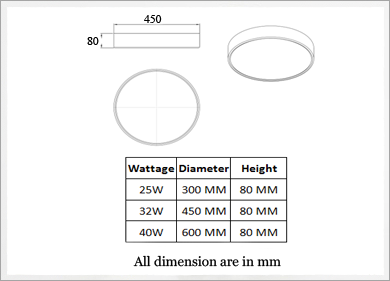

Dimension Details

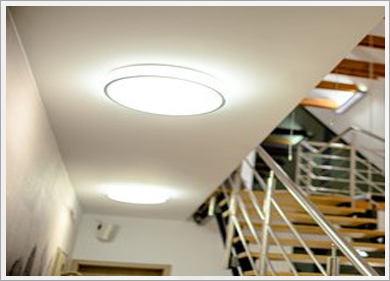

Application

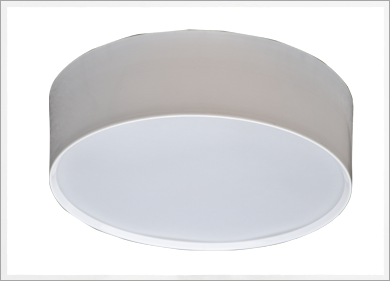

Description
Dale Surface is soft round shape luminaire with enhancing visual impression to the surrounding. With its visual & modern appearance makes it ideal for use across various commercial & hospitality spaces. The minimalistic designed luminaire with balanced light provides soothing and comfortable atmosphere. The light from luminaire is soft and makes very pleasant ambience for the surrounding or any other living space where it is lighted.
Specifications & Features
Dale Surface luminaire is availaible in 25W,32W & 40W .
The luminaire is made in superior CRCA housing in round shape with specification grade diffusser.
Three sizes of 25W in 300mm , 32W in 450mm, and 40W in 600mm.
CRCA housing body for excellent mechanical stability.
Diffuser is made of special grade diffusion material with high transmission, delivering effective light output without any dark or bright patch.
Uniform, high quality light, with good color rendering capabilities reveals true color of your surrounding space.
Rated life of L70 @ >50000 hours ensures uninterrupted long service life.
In-built electrical protections like over voltage, short circuit, over load, mis wiring , surge protection of min 2kV internal with electrical class I rating for additional safety precautions.
The luminaire is rated for Efficacy for 100 LPW Pf >0.95 , THD <10%.
Installation & Maintenance
Fix the given cradle to the ceiling surface using ribbed anchor screw system.
Mount the luminaire to the cradle and fix the two screws .
Driver replacement, unmount the luminaire from the cradle and repleace the drive.
Applications
Office Lighting
Retail Stores
Airport Terminals
Shopping Malls
Electrical & Ordering Information
| Model / Ordering code |
Description |
System Wattage |
Color Temp |
Mains Current |
THD |
PF |
Weight (Kg) |
| VLC1222 |
VLCS/127/25/57/00/0.3M/NWH/V0 |
25W |
5700K |
0.109 Amps |
< 10% |
>0.95 |
2.2kg |
| VLC1223 |
VLCS/127/32/57/00/0.45M/NWH/V0 |
32W |
5700K |
0.140 Amps |
< 10% |
>0.95 |
2.88kg |
| VLC1224 |
VLCS/127/40/57/00/0.6M/NWH/V0 |
40 W |
5700K |
0.175 Amps |
< 10% |
>0.95 |
4.5kg |
