HID Lighting

Class ‘B’ Ballast

Ballast

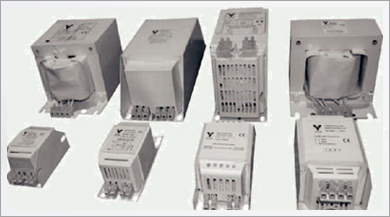

BALLAST CLASS ‘B’

Features

  • Vacuum impregnated
  • Precision wound ballast
  • Higher efficiency
  • Reduced current crest factor
  • Longer life
  • Optimized lamp performance
  • Available with Thermal cut-out
  • Available in all HID ranges
  • Wattage Part no Lamp Type Nominal Rated Voltage Lamp Current (A) Dimension (L x W x H)
    50 HSK052224 MH 220/240 0.76 104 x 69 x 56
    70 HSK072224 MH/SV 220/240 1 104 x 69 x 56
    80 MP082224 MH/MV 220/240 0.8 105 x 69 x 56
    100 HSK102224 MH 220/240 1.1 106 x 69 x 56
    125 MP127224 MH/SV 220/240 1.15 106 x 69 x 56
    150 HSK152224 MH/SV 220/240 1.8 140 x 69 x 59
    200 HMK202224 MH 220/240 1.6 135 x 68 x 56
    250 DHSD25H-V MH/SV 220/240 3 140 x 77 x 65
    250 HMD252224 MH/MV 220/240 2.15 123 x 77 x 64
    320 HMA322232 MH 230/240 2.63 167 x 85 x 72
    350 HMK352224 MH 220/240 2.80 137 x 84 x 64
    400 HSD402224U MH/SV 220/240 4.2 140 x 86 x 72
    400 HMD402224 MH/MV 220/240 3.25 185 x 84 x 69
    600 HSD602224 MH/SV 220/240 6.2 150 x 99 x 81
    1000 HDP003212 MH/SV 210/220/230/240 10.3 190 x 120 x 105
    1500 HMV022383 MH 380/400/415 6.7 215 x 150 x 126
    2000 DHZV943-V MH 380/400/415 10.3 215 x 150 x 126
    2060 DHZV944DY-G MH 380/400/415 12.2 230 x 150 x 126
    Lamp Enclosed Rated
