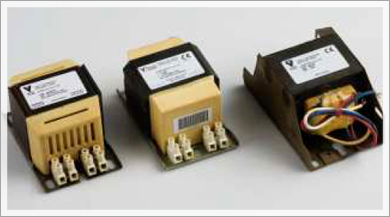

Class ‘H’ Ballast

Ballast

Vacuum impregnated

Precision wound ballast

Higher efficiency

Reduced current crest factor

Longer life

Optimized lamp performance

Available with Thermal cut-out

Available in all HID ranges

Wattage	Part Code	Description	Input Volts	Lamp Current (A)	Dimension (L x W x H)
70	HSK072224H	MH/SV	220/240	1	104 x 69 x 56
80	DMP08H-V	MH/MV	220/240	0.8	105 x 69 x 56
125	DMP12H-V	MH/MV	220/240	1.15	106 x 69 x 56
150	HSK152224H	MH/SV	220/240	1.8	140 x 69 x 56
250	DHSD25H-V	MH/SV	220/240	3.00	140 x 77 x 65
250	DHMD25H-V	MH/MV	220/240	2.15	123 x 77 x 64
400	DHSD40H-V	MH/SV	220/240	4.20	140 x 86 x 72
400	DHMD40H-V	MH/MV	220/240	3.25	140 x 77 x 57

HID Lighting
