Horticulture Lighting Fixtures

PDF Version

High-Performance Grow Light Solutions

Product Overview

Our horticulture lighting fixtures are engineered to provide optimal light spectrum and intensity for plant growth across all phases. From compact CMH fixtures to high-power DE HPS/MH systems, our range offers solutions for every cultivation need. Each fixture integrates advanced optical technology and durable construction to ensure maximum efficiency and longevity in demanding grow environments.

Advanced Fixture Technology

These fixtures incorporate precision reflectors, efficient heat management systems, and integrated ballast technology to deliver consistent performance. The design focuses on maximizing PAR output while minimizing energy consumption and maintenance requirements. With features like dimmable control, remote operation capabilities, and easy installation, our fixtures provide growers with complete control over their lighting environment.

Fixture Benefits

High-efficiency reflector systems
Integrated ballast technology
Advanced heat management
Dimmable control options
Easy installation and maintenance
Robust construction for longevity

Technical Features

Remote control compatible
Multiple mounting options
High power factor operation
Low THD electronics
Wide operating temperature range
Certified safety standards

315W CMH Grow Light Fixture

**315W CMH Lamp: Biquartz & Common**
Parameter	Unit	Value / Specification
Voltage	[V]	120
Current	[A]	2.63
Wattage	[W]	315
Lumens (Whole luminaire)	[lm]	38918
Power Factor	cosΦ	≥0.98
Bulb Type	-	PGZ18
CCT	[K]	3000K / 4000K
CRI	[Ra]	90
Rated frequency	[Hz]	50 / 60
PPFD	[μmol/s/w]	1.68
Average Life	[hrs]	12000

**Ballast: Dimmable & Non-dimmable**
Parameter	Unit	Value / Specification
Input Voltage	[V]	120-240 / 220-277
Input Frequency	[Hz]	50 / 60
Input Power Factor	cosΦ	≥0.98
THD	[%]	≤10
Wave Crest Ratio	-	≤1.7
Starting Time	[S]	5 Max
Pulse Voltage	[kV]	4-5
Output Rated Frequency	[Hz]	110
Open Circuit Voltage	[V]	≤440
Efficiency	[%]	≥92%

500W CMH Grow Light Fixture

**500W CMH Lamp**
Parameter	Unit	Value / Specification
Wattage	[W]	500
Lumens (Whole luminaire)	[lm]	52100
Power Factor	cosΦ	≥0.98
Bulb Type	-	PGZ18
CCT	[K]	3000K / 4000K
CRI	[Ra]	90
Rated frequency	[Hz]	50 / 60
PPFE (380-780nm)	[μmol/s/w]	1.6
Average Life	[hrs]	12000

**500W Ballast**
Parameter	Unit	Value / Specification
Input Voltage	[V]	120-240 / 208-277
Input Frequency	[Hz]	50 / 60
Input Power Factor	cosΦ	≥0.98
THD	[%]	≤10
Wave Crest Ratio	-	≤1.7
Starting Time	[S]	5 Max
Pulse Voltage	[KV]	4-5
Output Rated Frequency	[KHZ]	110
Open Circuit Voltage	[V]	≤440
Efficiency	[%]	≥92%

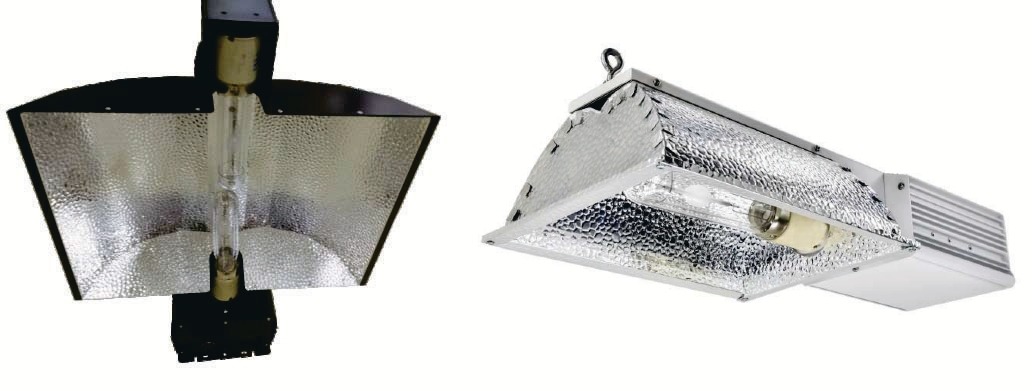

630W DE CMH Grow Light Fixture

**630W CMH Lamp**
Parameter	Unit	Value / Specification
Voltage	[V]	240
Current	[A]	2.63
Wattage	[W]	630
Lumens (Whole luminaire)	[lm]	75000
Bulb Type	-	T20
CCT	[K]	3000K / 4000K
CRI	[Ra]	90
PPFD	[μmol/s/w]	1.8
Average Life	[hrs]	12000

**630W Integrated Ballast**
Parameter	Unit	Value / Specification
Input Voltage	[V]	120-277
Input Frequency	[Hz]	50 / 60
Input Power Factor	cosΦ	≥0.98
THD	[%]	≤10
Wave Crest Ratio	-	≤1.7
Starting Time	[S]	5 Max
Pulse Voltage	[KV]	4-6
Output Rated Frequency	[Hz]	220
Open Circuit Voltage	[V]	≤450
Efficiency	[%]	≥92%

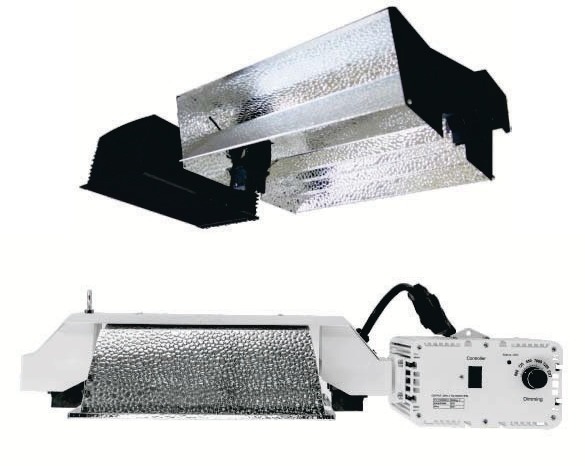

1000W HPS/MH Grow Light Fixture

**1000W HPS/MH Lamp**
Parameter	Unit	HPS Lamp	MH Lamp
Wattage	[W]	1000	1000
Lumens (Whole luminaire)	[lm]	160000	110000
Bulb Type	-	T10	T10
CCT	[K]	2100K	4000K / 6000K
CRI	[Ra]	30	70
Average Life	[hrs]	12000	12000
PPFE (380-780nm)	[μmol/s/W]	2.0	1.43

**1000W Ballast**
Parameter	Unit	120-240V Model	277/347V Model
Input Voltage	[V]	120-240V	277/347V
Input Frequency	[Hz]	50 / 60	50 / 60
Input Power Factor	cosΦ	≥0.98	≥0.98
THD	[%]	≤10	≤10
Wave Crest Ratio	-	≤1.7	≤1.7
Starting Time	[S]	5 Max	5 Max
Pulse Voltage	[KV]	4-5	3.6-4.5
Output Rated Frequency	[KHz]	100-170	80-170
Open Circuit Voltage	[V]	≤440	750
Efficiency	[%]	≥93%	≥92%
