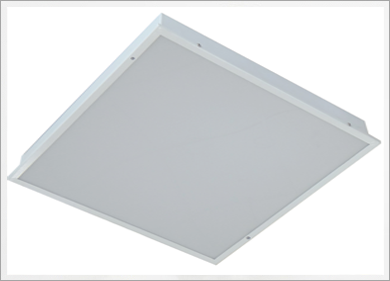

MELINIS PRO 2x2 Recessed

LED Panel Edgelit
MELINIS PRO 2x2 Recessed
LED Panel Edgelit

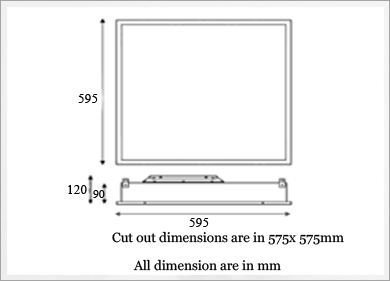

Dimension Details
LED Panel Edgelit
Application

Description

MELINIS PRO is 2x2 Full Lit Office lighting LED solution, for recessed commercial application. Offered in 20W, 22W, 24W, 26W, 28W, 30W, 36W and 42W in standard & High Lumen version. With its unique minimalistic design made of high grade CRCA material creates inviting atmosphere. Luminaire provides a high level of architectural flexibility through its color variants. Carefully selected diffuser made of special grade lighting material helps provide maximum light output with ultimate uniformity.

Specifications & Features

  • Minimalistic designed CRCA housing body for excellent mechanical stability.
  • Diffuser is made of special diffusion material with high transmission, delivering effective light output without any dark or bright patch.
  • Rated life of L70 @ 50000 hours ensures uninterrupted long service life.
  • Excellent color rendering capabilities reveals true color of your surrounding space.
  • Superior lumen and color maintenance.
  • Best in class lumen per watt - more light for less cost.
  • The luminaire is rated for Efficacy >100 LPW& 110LPW& 110 LPW Pf >0.95 , THD <10%.
  • In built electrical protections like over voltage, short circuit, over load, miswiring for additional safety precautions.
  • With high efficiency low power loss driver, system is maintained at cooler temperatures and leads to longer driver life.

    • Installation & Maintenance

  • Compatible with standard Armstrong ceiling with cut out dimension of 575 mm x 575 mm.
  • Chain mounting through two mounting bracket.

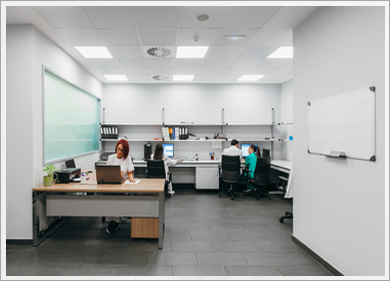

    • Applications

  • Office Interior & Hotels
  • Airport terminal & Restaurants
  • Healthcare & Schools
  • Departmental store & Shopping malls

    • Compliance

  • IP 20
  • Class I

    • ELECTRICAL & ORDERING INFORMATION

    Model / Ordering code Description System Wattage Color Temp THD Power Factor Main Current Weight (Kg)
    VLC1003 VLCR/100/22/57/00/NWH/V0 22W 5700K <10% >0.95 0.091 Amps >4.5kg
    VLC1004 VLCR/100/26/57/00/NWH/V0 26W 5700K <10% >0.95 0.115 Amps 4.5kg
    VLC1001 VLCR/100/30/57/00/NWH/V0 30W 5700K <10% >0.95 0.130 Amps 4.5kg
    VLC1006 VLCR/100/36/57/00/NWH/V0 36W 5700K <10% >0.95 0.150 Amps 4.5kg
    VLC1007 VLCR/100/42/57/00/NWH/V0 42W 5700K <10% >0.95 0.185 Amps 4.5kg
    VLC1022 VLCR/100/20/57/10/NWH/V0 20W 5700K <10% >0.95 0.087 Amps 4.5kg
    VLC1023 VLCR/100/24/57/10/NWH/V0 24W 5700K <10% >0.95 0.105 Amps 4.5kg
    VLC1024 VLCR/100/26/57/10/NWH/V0 26W 5700K <10% >0.95 0.114 Amps 4.5kg
    VLC1025 VLCR/100/30/57/10/NWH/V0 30W 5700K <10% >0.95 0.130 Amps 4.5kg
    Lamp Enclosed Rated
