HID Lighting

High Bay

Luminaires

High Bay
High Bay
High Bay

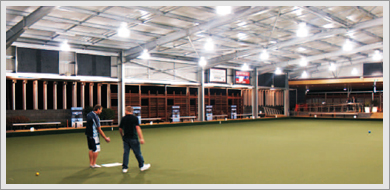

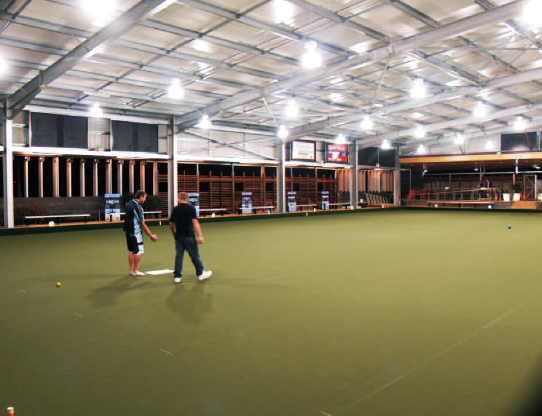

Applications

  • Assembly shop
  • Atrium
  • Lobbies
  • Aircraft hangers
  • Warehouses
  • Super market
  • Construction

  • Top mounted die cast aluminium corrosion resistant housing accommodating lamp holder, Copper wound ballast, PF correction capacitor, Electronic ignitor, prewired upto terminal block.
  • Epoxy Powder coated painting
  • M.s. eyebolt for mounting
  • E40 Porcelain Lamp holder base
  • Earthing terminal
  • Reflector

  • High efficient polycarbonate reflector provides excellent light distribution.
  • Open Rated

    Part No Lamp Type Lamp Qty Wattage Nominal Rated Voltage A B
    VL/HBP/OR-150W MH/SV 1 150 220/240 570 625
    VL/HBP/OR-200W MH 1 200 220/240 570 625
    VL/HBP/OR-250W MH/MV 1 250 220/240 570 625
    VL/HBP/OR-320W MH 1 320 220/240 570 625
    VL/HBP/OR-400W MH/MV 1 400 220/240 570 625
    Lamp Enclosed Rated
    * MH/MV configuration for 250 & 400 W is also available

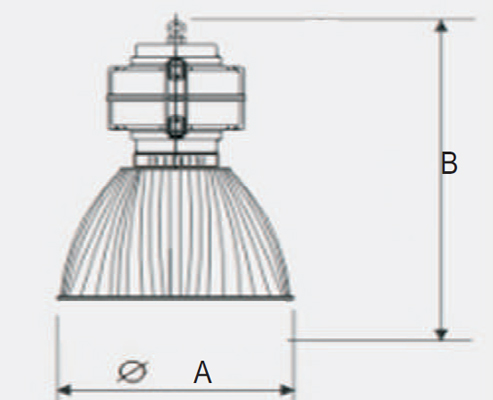

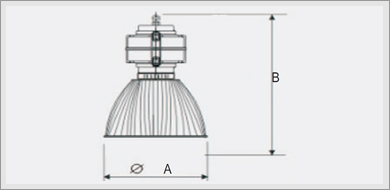

    Dimensions (mm) +/- 5%
