LED Lighting

LED Track Light

PDF Version

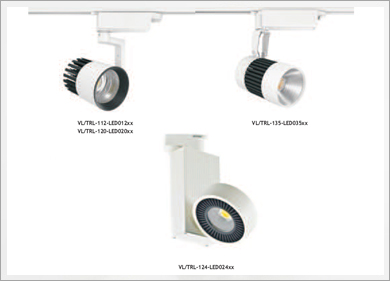

Spoton

Die cast Aluminum housing polyester powder coated

Precise beam control by Aluminum reflector

Extruded Aluminum heat sink for thermal stability

Adjustable head spot lighting

50% energy saving Vis a Vis conventional track light

Constant current driver with PF > 90%

More than 85% driver efficiency

Wide operating voltage 110 - 265V

Color Rendering Index (CRI) > 80

Working ambient temperature -20°C to + 45°C

Rated Life 50,000Hrs (Ta= 30°C @ L70)

High intensity of illumination with 30°view angle

Flicker free instant start electronic operation

Electric wave & radio interference free

Without mercury, UV & IR radiation

IP 20 Ingress Protection

Hotels

Museum

Restaurant

Art Galleries

Exhibition hall

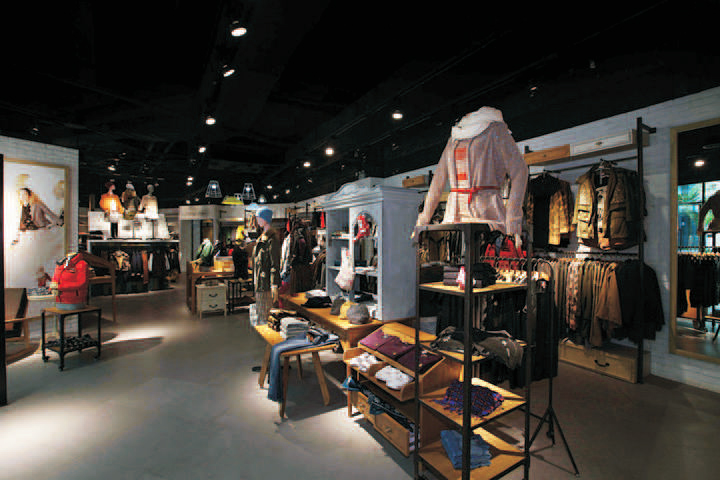

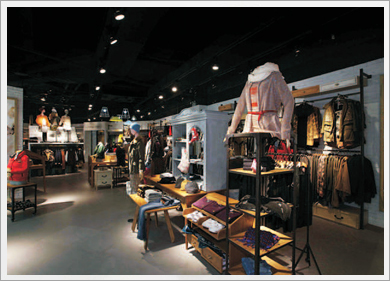

Retail Stores

Exclusive Showroom

Atmosphere creation

Mounting with 1Mtr 2 Wire Track and Connectors

Power Supply should be disconnected before service

Product ID / Ordering Code	Product Description	Wattage(W)	Nominal Voltage(V)	Mains Current(A)	CCT (K)	Lumen (lm)
VL/TRL-112-LED01265	Spoton LED Track Light 12/CW	12	230	0.055	6500	1100
VL/TRL-112-LED01230	Spoton LED Track Light 12/WW	12	230	0.055	3000	1100
VL/TRL-120-LED02065	Spoton LED Track Light 20/CW	20	230	0.092	6500	1800
VL/TRL-120-LED02030	Spoton LED Track Light 20/WW	20	230	0.092	3000	1800
VL/TRL-124-LED02460	Spoton LED Track Light 24/CW	24	230	0.115	6500	1950
VL/TRL-124-LED02430	Spoton LED Track Light 24/WW	24	230	0.115	3000	1950
VL/TRL-135-LED03565	Spoton LED Track Light 35/CW	35	230	0.165	6500	3150
VL/TRL-135-LED03530	Spoton LED Track Light 35/WW	35	230	0.165	3000	3150

Accessories: 1Mtr Two Wire circuit track with I, L, T, + type connector
