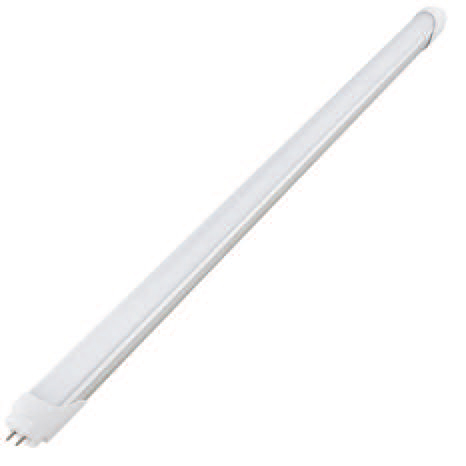

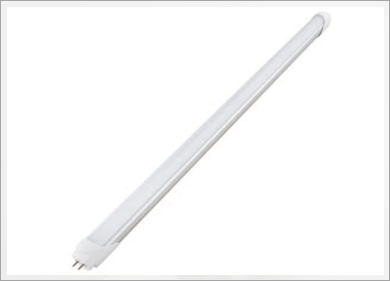

LED Retrofit T8 Tube

T-Line

 T-Line
 T-Line
 T-Line

Specifications & Features

  • Extruded Aluminum housing with highly efficient PC Opal Diffuser
  • High energy saving Vis a Vis Traditional fluorescent Tube-50% compared to standard 2ft & 4ft T8 or,T12 FTL
  • Over load, over voltage, short circuit and reverse polarity protection
  • Built-in constant current driver with > 95% power factor
  • More than 85% driver efficiency with < 15% Current THD
  • Equipped with 2.5KV Surge Protection
  • Wide operating voltage 100 - 277Vac
  • Color Rendering Index (CRI) > 80
  • Working ambient temperature -20°C to + 45°C
  • Rated Life 50,000Hrs (Ta= 30°C @ L70)
  • High intensity of illumination with 120°beam angle
  • Uniform diffuse & excellent glare control
  • Instant start without flash & humming
  • Electric wave & radio interference free
  • Without mercury,UV & IR radiation
  • IP 20 Ingress Protection
  • Applications

  • Hotels
  • Offices
  • Factories
  • Warehouse
  • Backlight
  • Shopping Malls
  • Residential Lighting
  • Cove Lighting
  • Installation & Maintenance

  • Retrofit solution to standard G13 medium bi-pin base 2ft & 4ft T8 or,T12 Tube
  • Power Supply should be disconnected before service
  • Technical & Ordering Information

    Product ID / Ordering Code Product Description Wattage(W) Nominal Voltage(V) Mains Current(A) CCT (K) Lumen (lm)
    VL/LTL-T8-LED01065 T-Line Retrofit T8 LED Tube 10/CW L600 10 230 0.045 6500 1000
    VL/LTL-T8-LED01657 T-Line Retrofit T8 LED Tube 16/CW L1200 16 230 0.073 6500 1600
    VL/LTL-T8-LED01857 T-Line Retrofit T8 LED Tube 18/CW L1200 18 230 0.082 6500 1800
    VL/LTL-T8-LED02057 T-Line Retrofit T8 LED Tube 20/CW L1200 20 230 0.090 6500 2100
    Lamp Enclosed Rated

    * XX Also available in 3000K & 4000K CCTs
