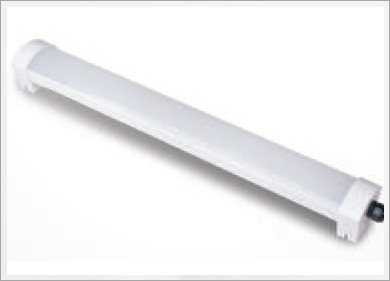

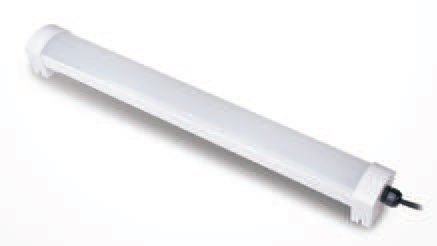

Industrial LED Luminaire-Triproof
Indus
Specifications & Features
Integrated injection thermo-bio plastic housing frame with highly efficient PC Opal Diffuser.
High energy saving Vis aVis Traditional fluorescent-50% compared to CFL/FTL luminaires.
Direct replacement to traditional twin FTL Luminaries.
Integrated Constant current power supply with PF > 95%
More than 85% driver efficiency with < 20% Current THD
Equipped with 4KV Surge Protection
Wide operating voltage 100 - 277Vac
Color Rendering Index (CRI) >= 70
Working ambient temperature -20°C to + 45°C
Rated Life 35,000Hrs (Ta= 30°C @ L70)
High intensity of illumination with 120°beam angle
Uniform diffuse & excellent glare control
Flicker free instant start electronic operation
Anti-Corrosive, Dust proof and water proof luminary
Electric wave & radio interference free
Without mercury,UV & IR radiation
IP 65 Ingress Protection

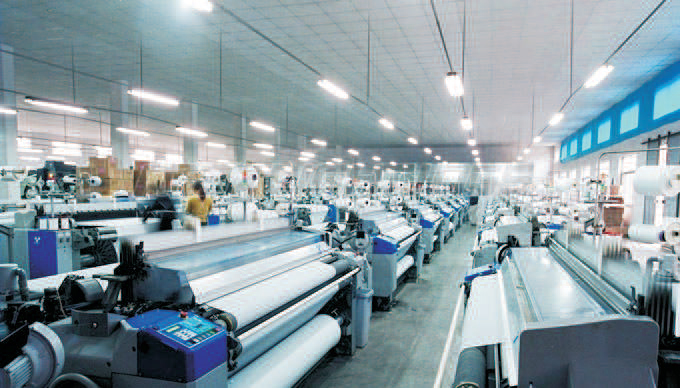

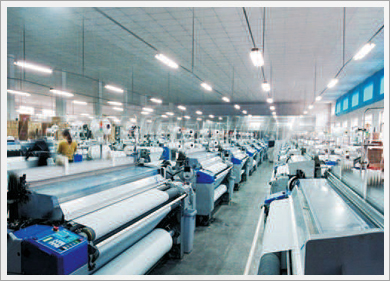

Applications
Factories
Hospitality
Cold Storage
Tunnel lighting
Departmental store
Underground Garage
Workshop/ Assembly floor
Installation & Maintenance
Suitable for Suspension and ceiling mounting through clamps and suspension cables
Power Supply should be disconnected before service
Technical & Ordering Information
Product ID / Ordering Code |
Product Description |
Wattage(W) |
Nominal Voltage(V) |
Mains Current(A) |
CCT (K) |
Lumen (lm) |
VL/ITL-416-LED01857 |
Indus LED Luminaire 18/CW IP 65 L600 |
18 |
230 |
0.082 |
5700 |
1650 |
VL/ITL-416-LED03657 |
Indus LED Luminaire 36/CW IP 65 L1200 |
36 |
230 |
0.165 |
5700 |
3250 |
